12,000 BTU 22.5 SEER Stealth Solar Ready Single Zone Wall Mount Mini Split System w/ 16ft Line Set R32 | 115V

Solar Ready Hybrid System
AC/DC Hybrid Power Inputs
Includes pre-vacuumed 16.4 ft refrigerant line set
Heating & Cooling Capacity
Energy Star Certified
6 Year Limited Warranty

Note this unit is Solar Ready, but does not require use of Solar for Operation.

Solar Panels Not Included

The Stealth Solar-Ready Hybrid 12,000 BTU mini-split system is designed to deliver reliable year-round comfort while offering flexible energy options. This unit supports both traditional AC power and direct DC solar input, allowing seamless switching between grid and solar depending on availability. It’s an ideal solution for homes or light commercial spaces seeking energy savings and solar integration without compromising performance.

Solar-Ready, Grid-Optional Operation

Runs efficiently on solar or grid power—or both—with no batteries or inverters required.

Hybrid design accepts 115V AC and 90–380V DC input directly into the outdoor unit
Automatically prioritizes solar when available to reduce grid reliance
MC4-compatible solar inputs eliminate the need for additional solar equipment
Built-in AC power limiter (adjustable from 0 to 600W) for energy use control
Capable of operating off-grid during daylight with sufficient solar input

High-Efficiency Heating and Cooling

Delivers consistent climate control in a variety of environments.

12,000 BTU cooling and heating capacity
SEER2 rating of 22.5 / HSPF2 rating of 10.5 for exceptional efficiency
Operates in outdoor temperatures from 5°F to 131°F
Uses eco-friendly R32 refrigerant for reduced environmental impact

Installer-Focused Design

Engineered for quick, professional installation with minimal on-site prep.

Includes pre-vacuumed 16.4 ft refrigerant line set
Quick-connect solar terminals on outdoor unit
Compact outdoor condenser (approx. 110 lbs) for flexible placement
Indoor unit designed for quiet operation with modern aesthetics

What’s Included

Everything needed for standard professional installation.

Indoor air handler
Outdoor condenser unit
16.4 ft line set and interconnect wiring
Mounting bracket and accessory kit
WiFi Ready
LCD remote control

Warranty

6-Year Limited Warranty on compressor and 4-Year on parts with Online Registration

Ideal For

Professionally installed in:

Homes, cabins, and workshops
Solar-assisted HVAC setups
Energy-conscious or off-grid properties

Condenser Specifications:

SKU	S-12Z-ACDC230
Weight	81.570000
AHRI Certificate Number	208650754
Manufacturer	Stealth
Product Features	WiFi, Solar Ready
Additional Information	Heat Pump
Additional Information	Maximum Line Set Length: 98'
Additional Information	Minimum Line Set Length: 10'
Additional Information	Drain: 5/8"
HSPF	9.7
Cooling BTU	12,000
Heating BTU	12,000
Maximum CFM	1060 CFM
Decibel Level (dBA)	52 dB(A)
Energy Star	Yes
Refrigerant	R32
SEER	18-20
EER	12.6
Compressor Type	Rotary
Liquid Line	1/4"
Suction Line	3/8"
Electrical	115V 1 Phase 60 Hz
Electric Phase Filter	Single Phase
Max Breaker Size	20 Amps
Min. Breaker Size	19.05 Amps
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Min/Max Outdoor Temp for Heating	5F - 86F
Min/Max Outdoor Temp for Cooling	32F - 131F
Zone Compatibility	Single Zone

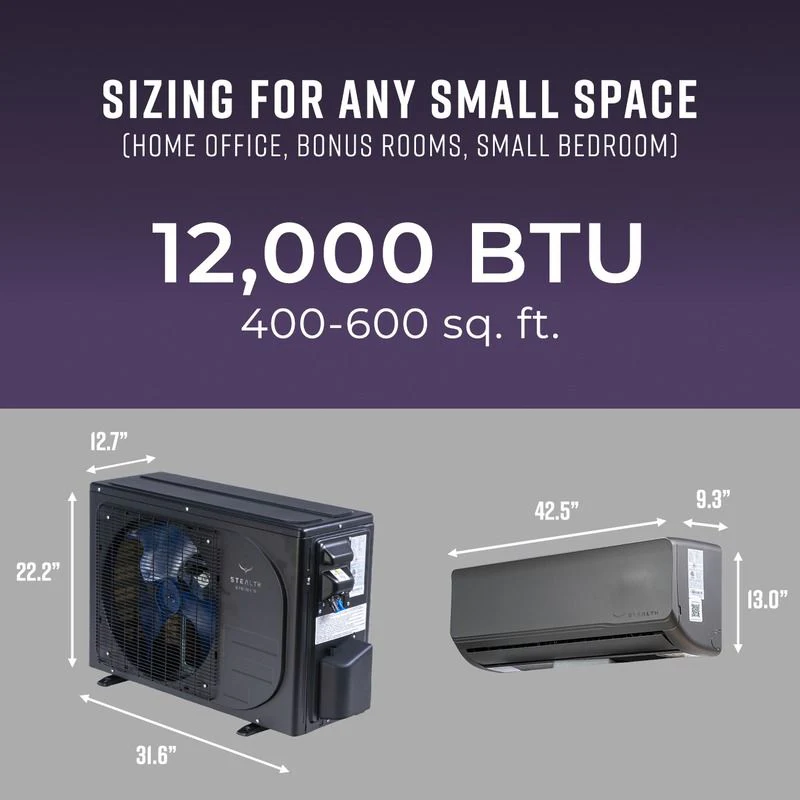

Height	22.20"
Width	31.57"
Depth	12.72"
Warranty	6 year compressor, 4 year parts with online registration
Resources	Stealth Submittal Installation Manual Stealth Warranty Card
Safety Information	PROPOSITION 65 WARNING

Air Handler Specifications:

SKU	S-12W-ACDC230
Weight	26.100000
Manufacturer	Stealth
Controller	Wireless Included
Product Features	WiFi, Solar Ready
Additional Information	Drain: 5/8"
Cooling BTU	12,000
Heating BTU	12,000
Maximum CFM	250-340 CFM
Decibel Level (dBA)	Indoor Unit: 29-41.5 dB(A)
Refrigerant	R32
SEER	18-20
EER	12.6
Liquid Line	1/4"
Suction Line	3/8"
Electrical	115V 1 Phase 60 Hz
Electric Phase Filter	Single Phase
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	11.61"
Width	33.07"
Depth	8.07"
Warranty	6 year compressor, 4 year parts with online registration
Resources	Stealth Submittal Installation Manual Stealth Warranty Card
Safety Information	PROPOSITION 65 WARNING

1 Zone Solar Mini Split Systems

12,000 BTU 22.5 SEER Stealth Solar Ready Single Zone Wall Mount Mini Split System w/ 16ft Line Set R32 | 115V

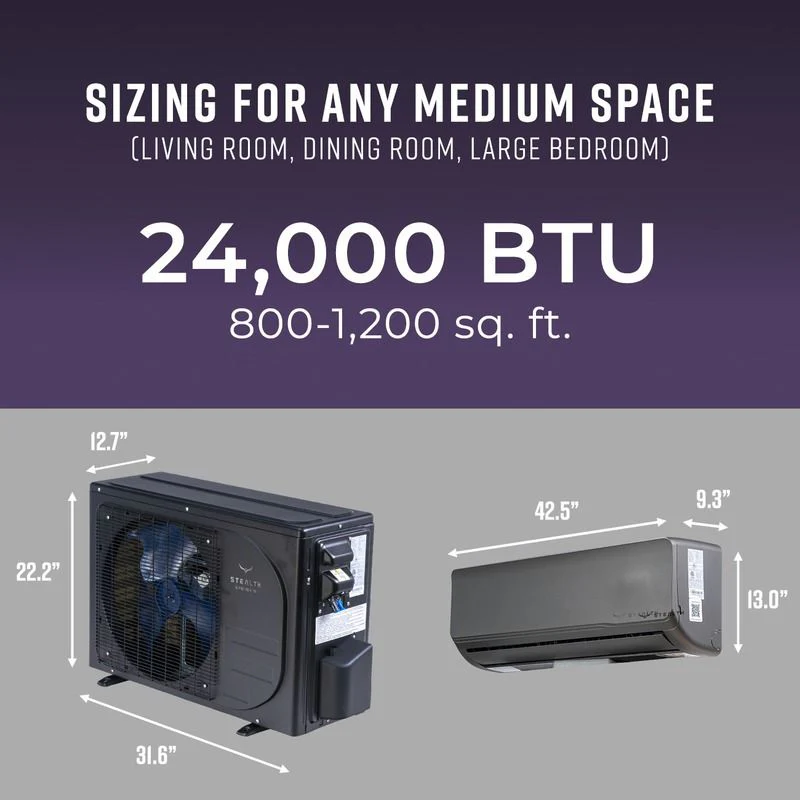

24,000 BTU 21 SEER Stealth Solar Ready Single Zone Wall Mount Mini Split System w/ 16ft Line Set - R32 | 230V
