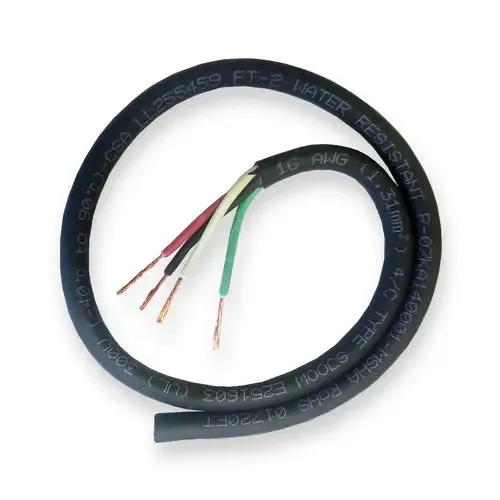

4 Lead Mini Split Connection Wire (Sold by the Foot)

4 Lead Mini Split Connection Wire (Sold by the Foot)

Summary

• Conductor wire for mini split systems
• Sold by the foot. Any length is available. Specify the length needed.
• Price is given PER FOOT
• UL and CSA Approved for Indoor and Outdoor use

Technical Information

• AWG Size: 16
• No. of Cond.: 4
• Conductor Stranding: 26/30
• Approx LBS/MFT: 95
• Nom. Insul. Thick: 0.030 inches
• Jacket Thick: 0.030
• Nom. O.D. of Cable: 0.365 inches
• Amps: 10 A
• Color Codes: Black, White, Red, Green
• UL Style: SJOOW
• CSA Type: Approved
• Min. Temp: -40°C
• Max. Temp: 90°C
• Cond. Material: Bare Copper
• Insul. Material: Ethylene Propylene Diene Monomer Rubber (EPDM)
• Jacket Material: Chlorinated Polyethylene (CPE)
• Max. Voltage: 300
