Air-Con Sky Pro 9000 BTU Concealed Duct Mini Split Air Conditioner 19 SEER

Air-Con Sky Pro 9000 BTU Concealed Duct Mini Split Air Conditioner 19 SEER

Heat & Cool - Enjoy year round comfort with the ability to heat or cool your room or space.

Energy Savings - With a SEER up to 19 rating**, you can save money on your monthly electricity bill!

Note: Licensed HVAC technician required for proper installation and maintenance.

Package includes the following:

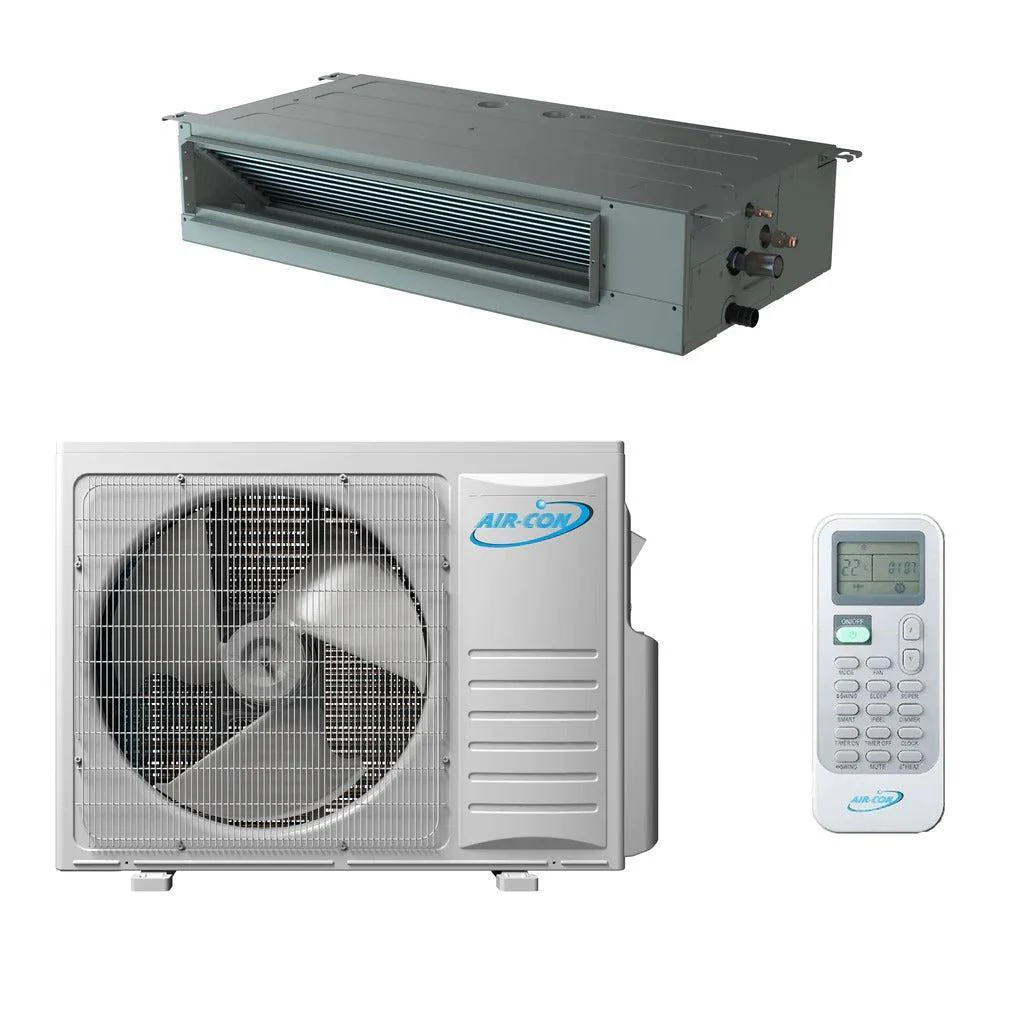

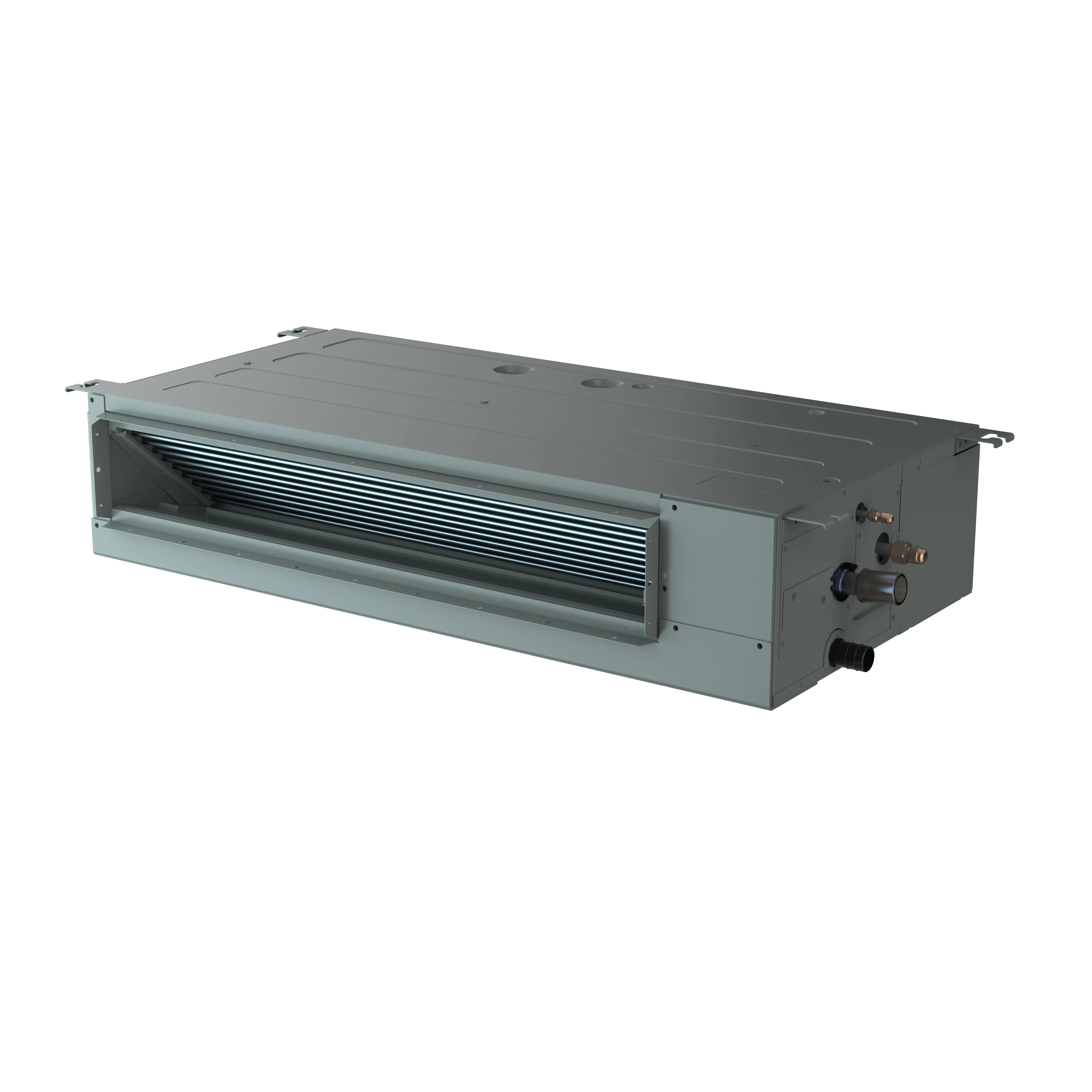

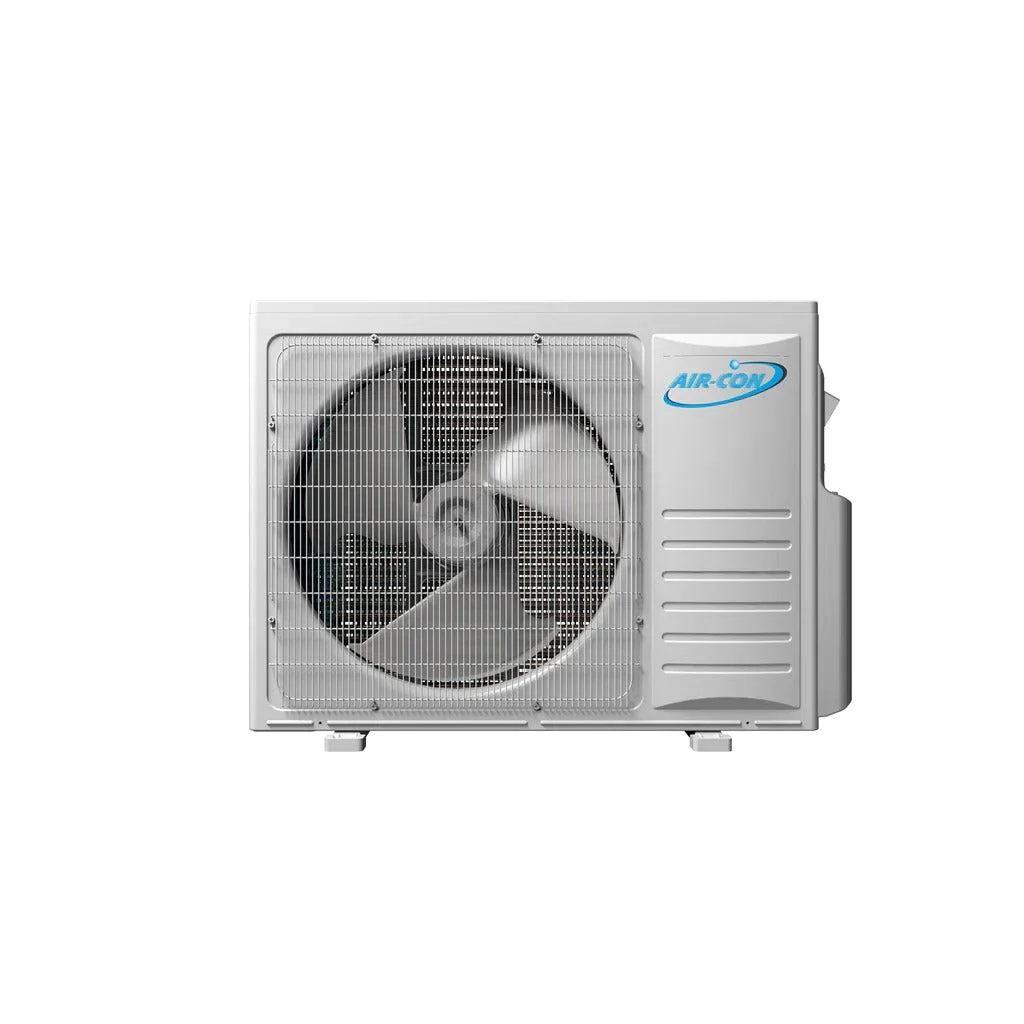

• Indoor & Outdoor Unit

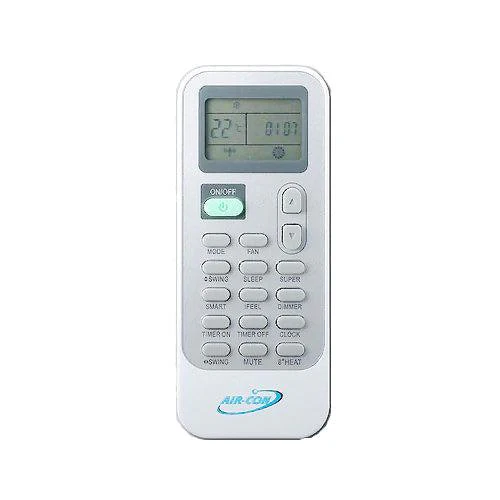

• Remote Control

*Air-Con units compatible with Cielo Breez remote. Sold separately.

** This unit's AHRI Reference Number is 205129517.

Features:

Key Features:

• 24hr Timer

• Wired Controller

• Auto Restart

• Cooling and Heating up to 5° F

• 220v / 1ph / 60Hz

Technology:

Tech & Specifications

Specifications

Brand	Air-Con International
Model	ASLEK4H4S09 / ASLCI4H4S09
Voltage/ Frequency/ Phase	208/230V - 60Hz - 1 phase
Cooling Capacity	9000
Heating Capacity	9000
Watts	750
Amperage	3.7
SEER	19
HSPF	9.5
Operating Ambient Temperature	5° F Cooling / 5° F Heating
Indoor Unit Dimensions	35-7/8" x 7-1/2" x 17-5/8"
Outdoor Unit Dimensions	31-7/8" x 22-7/8" x 11"
Lineset Size	1/4" & 3/8"

Warranty Details

5 Year Parts Warranty, 7 Year Compressor Warranty

Information & Guides

Sky Pro Series Condenser Installation Guide

Sky Pro Series Air Handler Installation Guide

Wired Remote Technical and Service Manual

Wireless Remote Control Manual

WiFi Manual

Sky Pro Series Submittal

Specifications Sheet

AHRI Certification

Energy Guide
