Goodman 2 Ton 15.2 SEER2 Heat Pump Condenser (R-32 Refrigerant) - GLZS5BA2410

Goodman 2 Ton 15.2 SEER2 Heat Pump Condenser (R-32 Refrigerant) - GLZS5BA2410

The Goodman 2 Ton 15.2 SEER2 Heat Pump Condenser (R-32 Refrigerant) - GLZS5BA2410 provides reliable cooling and heating at money-saving energy efficiency levels compared to lower SEER heat pump units.

The Goodman GLZS5BA2410 heat pump features an efficient copper tube/enhanced aluminum fin coil, a suction-line accumulator, a compressor crankcase, and service valves for easy maintenance. It comes fully charged with enough refrigerant for 15ft of lineset for a simplified installation process and is AHRI Certified and ETL Listed.

Its single-speed condenser fan motor ensures consistent airflow for optimized performance. The unit comes pre-charged with refrigerant for a seamless installation process. Contractors will appreciate the convenient large screw lugs for secure wiring and easy connection of the ground wire. You can never go wrong with a Goodman, upgrade your HVAC system today and enjoy energy-efficient heating and cooling, reliability from a long-time brand, and peace of mind with the 10-year parts, and 10-years compressor warranty.

Standard Features:

• High-efficiency scroll compressor

• SmartShift® technology to ensure quiet reliable defrost
• Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5 ton
• Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
• Single-speed PSC condenser fan motor
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Fully charged for 15’ of tubing length
• Ground lug connection
• Fully enclosed contactor
• Capacitor with extended life
• AHRI Certified; ETL Listed

Cabinet Features:

• Removable grille style top design compliant with UL 60335-2-40

• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• Single panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Specifications:

Brand	Goodman®
Model	GLZS5BA2410
Energy Star Certified	Yes
Warranty	10 Years Parts Warranty 10 Years Compressor Warranty
Nominal Capacities	Cooling (BTU/h): 24,000 Heating (BTU/h): 24,000 SEER2: 15.2 HSPF2: 8.2 Decibels: 73.0
Compressor	RLA: 10.2 LRA: 59.3 Stage: Single Type: Scroll
Condenser Fan Motor	Horsepower: 1/6 FLA: 0.95
Refrigeration System	Refrigerant Line Size Liquid Line Size (“O.D.): 3/8" Suction Line Size (“O.D.): 3/4" Refrigerant Connection Size Liquid Valve Size (“O.D.): 3/8" Suction Valve Size (“O.D.): 3/4" Refrigerant Type: R-32 Valve Connection Type: Sweat Refrigerant Charge (oz.): 83
Electrical Data	Volts/Phase (60 Hz): 208/230-1-60 Minimum Circuit Ampacity: 13.8 Max. Overcurrent Protection: 20 Min / Max Volts: 197/253 Electrical Conduit Size: 1/2" or 3/4"
Unit Weight (lbs)	Equipment Weight: 171 Shipping Weight: 186

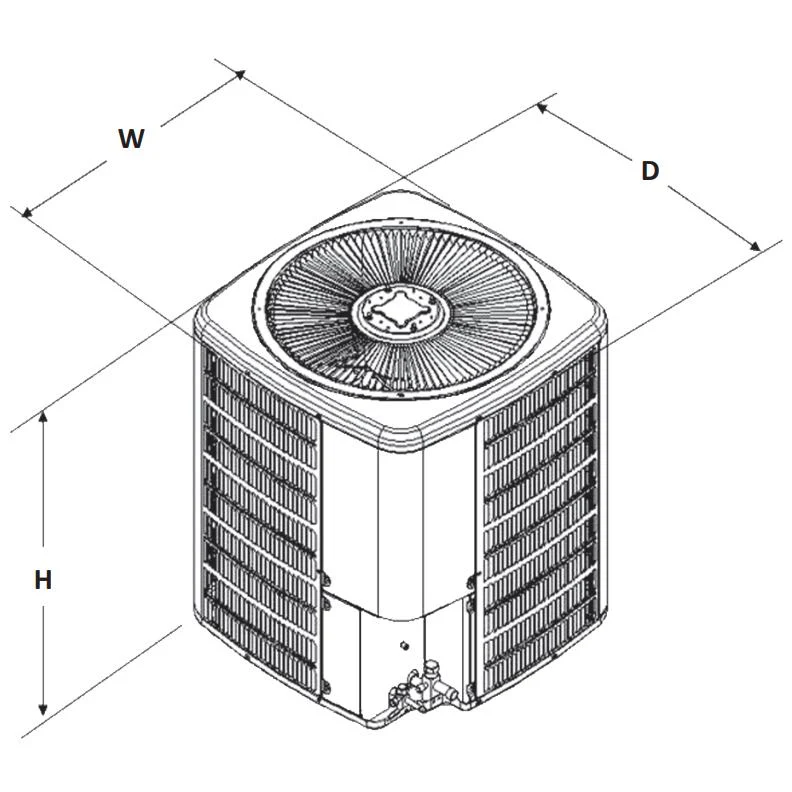

Dimensions (W x D x H)	29 x 29 x 39-1/2 inches
Resources	Specifications Sheet Installation Manual Service Manual Application Guide Warranty Certificate
