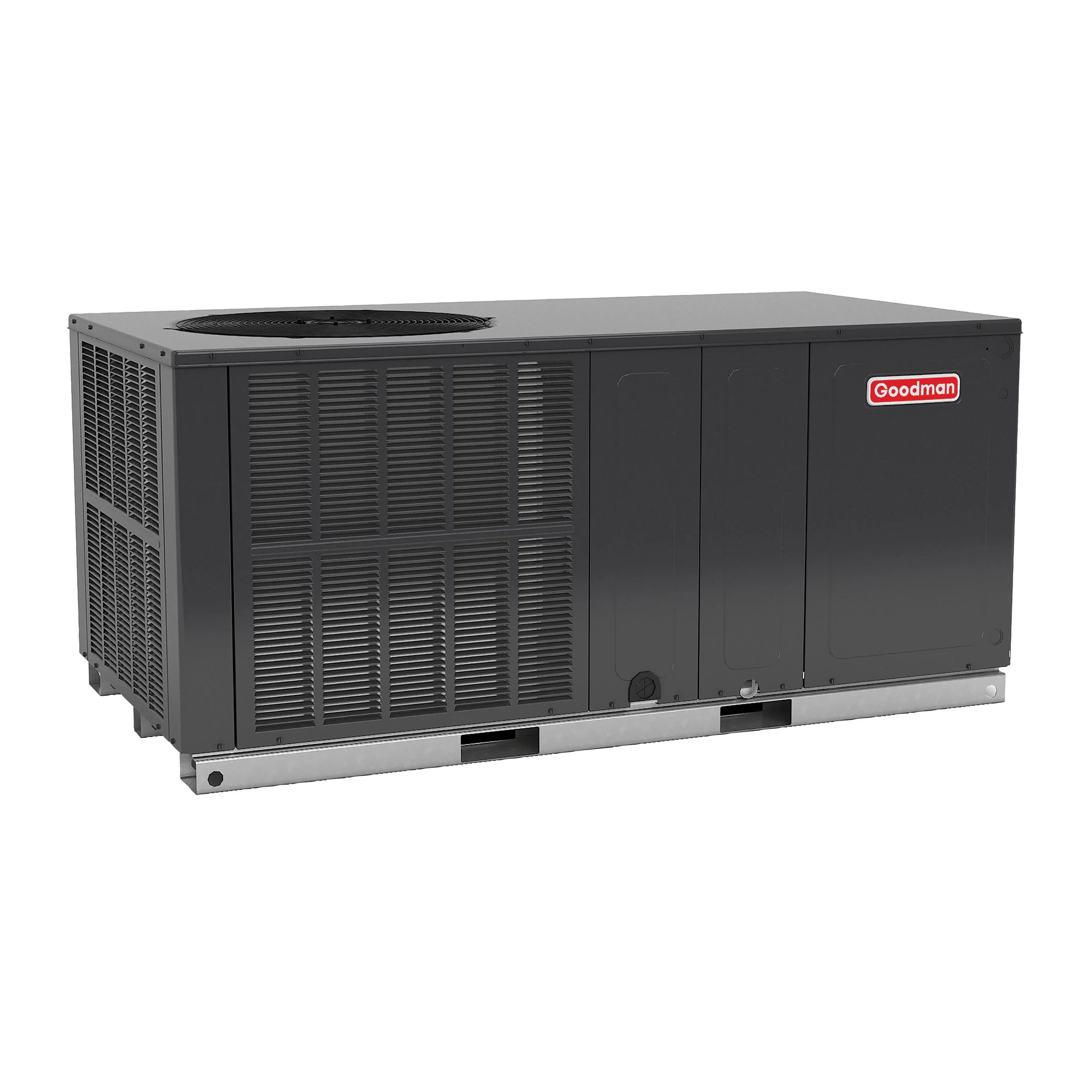

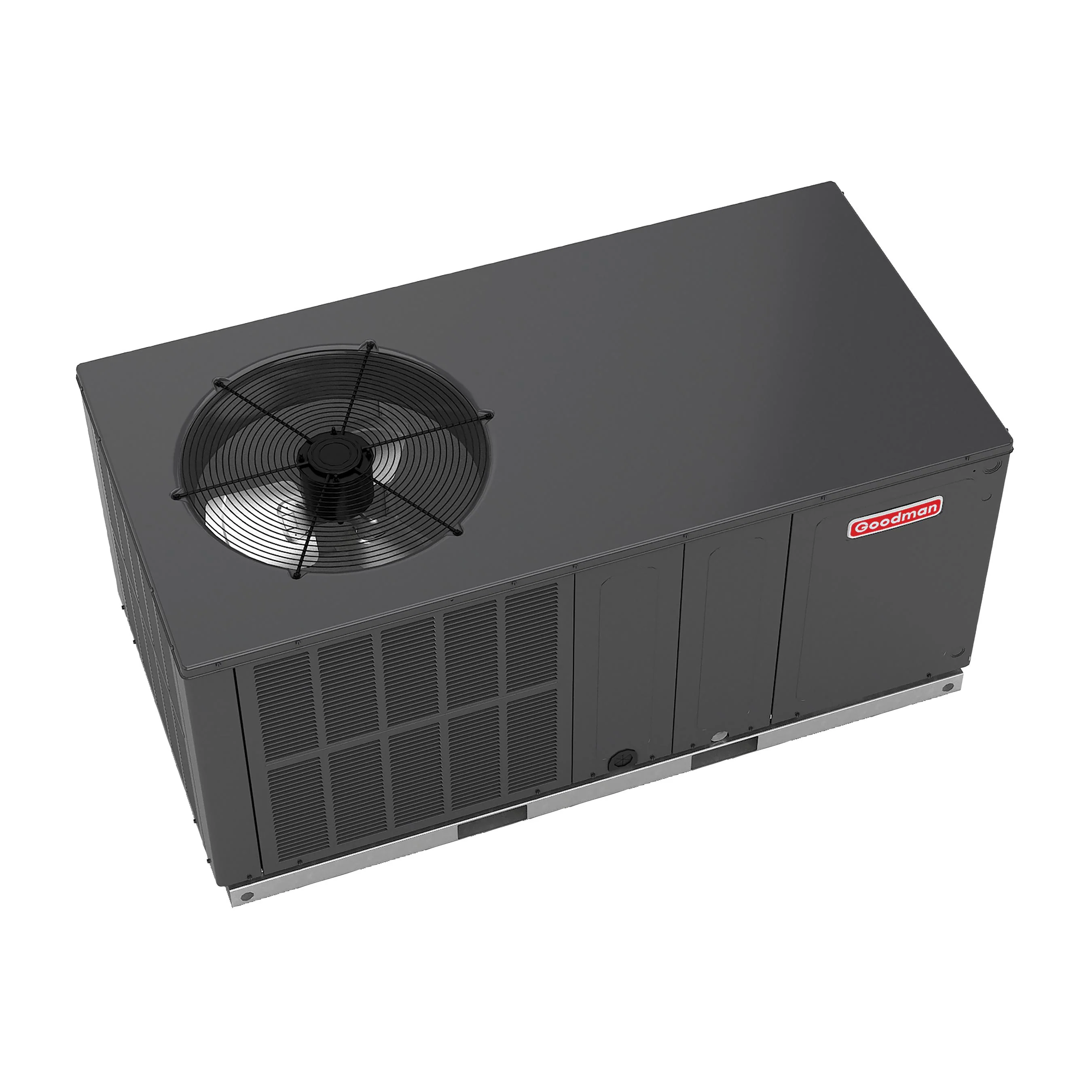

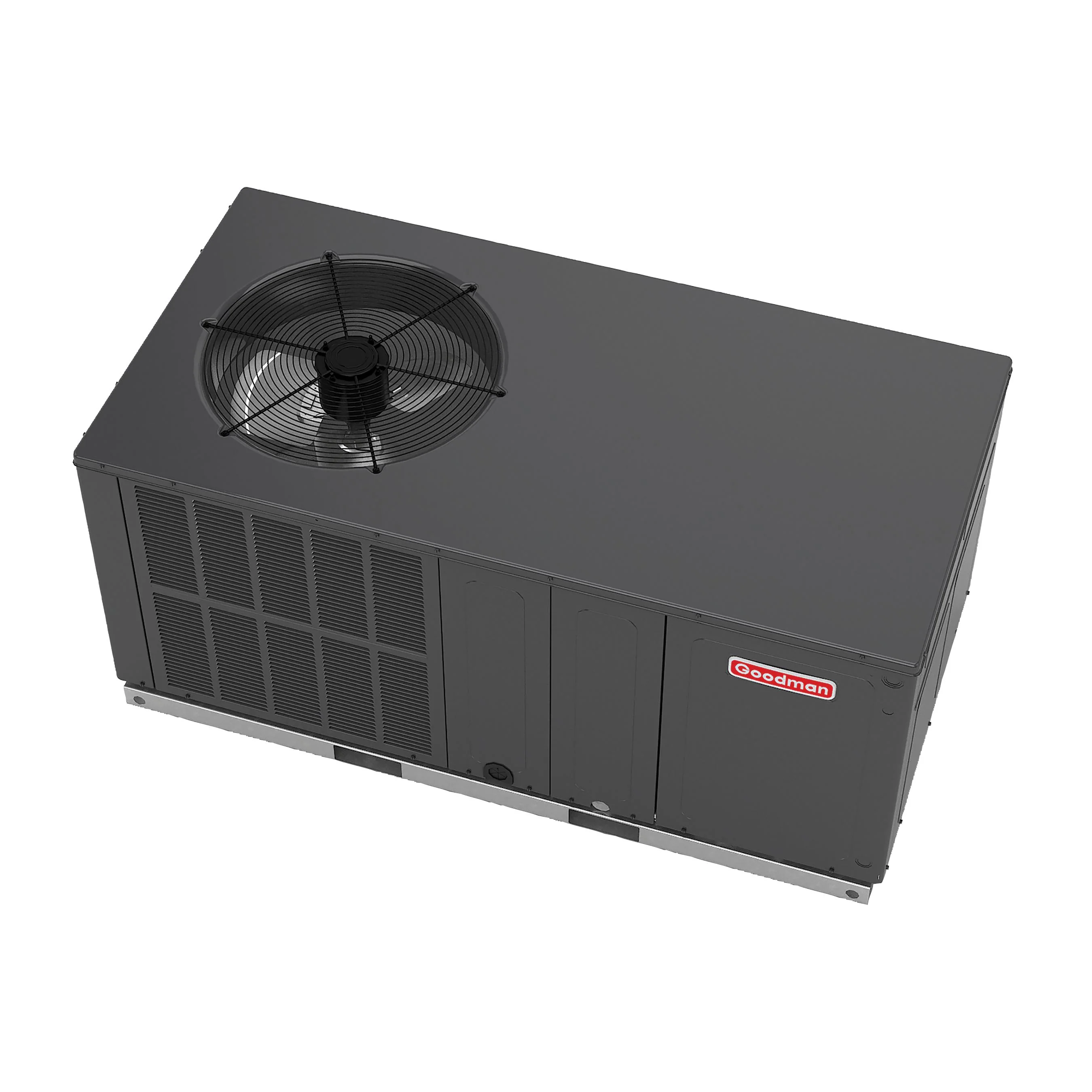

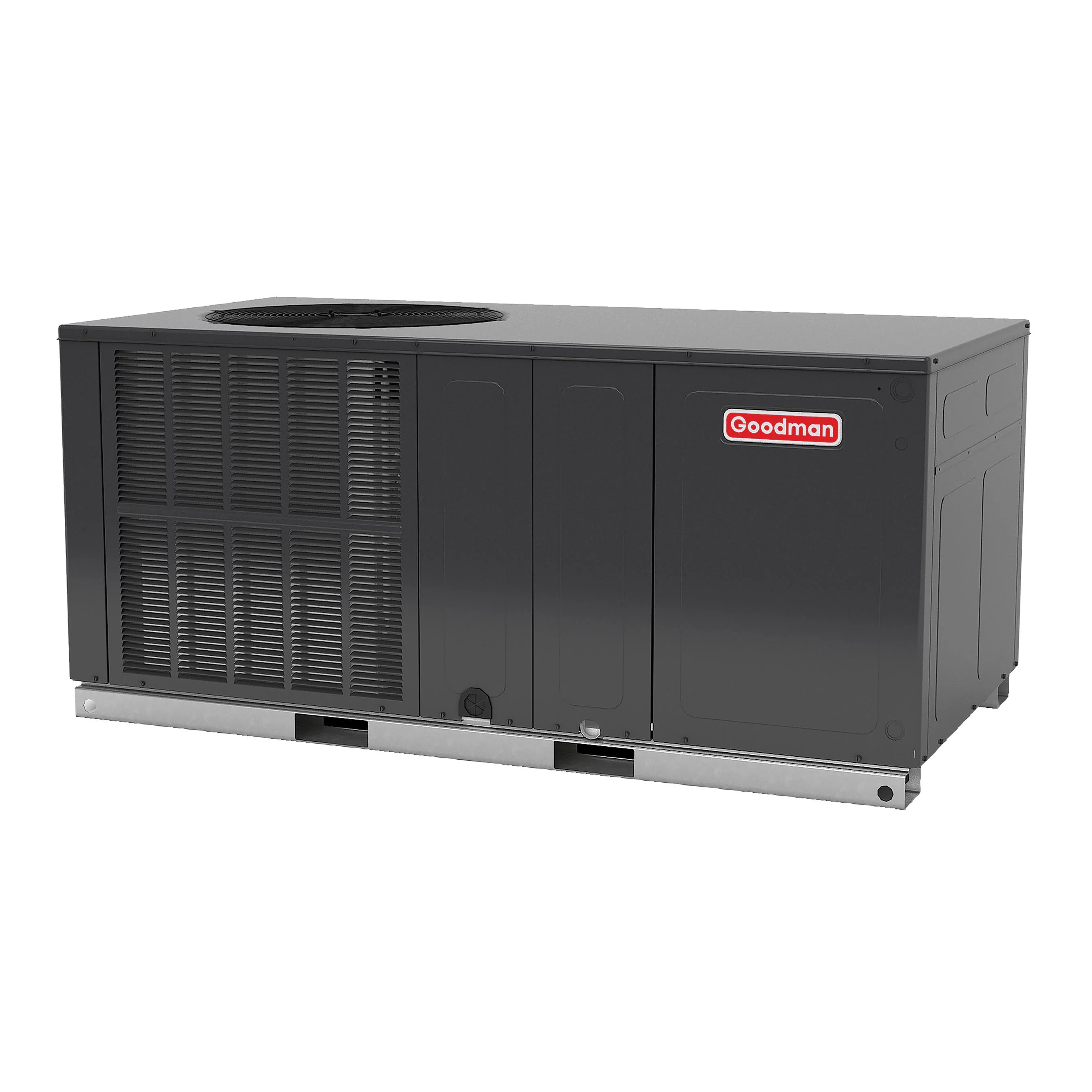

Goodman 4 Ton 15.2 SEER2 Packaged Heat Pump - GPHH54841
Goodman 4 Ton 15.2 SEER2 Packaged Heat Pump - GPHH54841
The Goodman 4 Ton 15.2 SEER2 Packaged Heat Pump - GPHH54841 provides refreshingly-affordable value to homeowners and small businesses. Goodman brand Packaged Units deliver quiet, year-round comfort from a single, self-contained unit. These energy-efficient units operate as an air conditioner during warm weather, and in the winter deliver heat pump-generated warmth. The energy-efficient Goodman brand GPHH54841 Packaged Heat Pump provides economical air conditioning, then, by reverse cycle, delivers economical heating during colder periods. Supplementary electric heat is added at predetermined temperatures during severe cold spells.
Standard Features:
- High-efficiency scroll compressor
- Multi-speed ECM indoor blower motor
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Quiet horizontal discharge
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Louvered condenser coil protection
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GPHH54841 |
| Warranty | 10 Years Parts Warranty with online registration |
| Configuration | Horizontal |
| Cooling Capacity |
Total BTU/h: 46,000 Sensible BTU/h: 35,788 SEER2 / EER2: 15.2 / 11.2 AHRI Numbers: 208842426 |
| Heating Capacity |
BTU/h (47°F): 44,000 C.O.P. (47°F): 3.55 BTU/h (17°F): 26,000 C.O.P. (17°F): 2.30 HSPF2: 6.70 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10" x 8" Cooling CFM: 1,600 Fan-Only CFM: 1,400 No. of Speeds: 5 Horsepower - RPM: 3/4 - 1,050 |
| Evaporator Coil |
Face Area (ft²): 6.23 Rows Deep: 4 Fins per Inch: 14 Metering Device Type: TXV Drain Size (NPT): 3/4" - 14 NPT Refrigerant Charge (oz.): 170 |
| Condenser Fan |
Horsepower - RPM: 1/4 - 1075 Fan Diameter: 22 # of Fan Blades: 4 |
| Condenser Coil |
Face Area (ft²): 16.5 Rows Deep: 2 Fins per Inch: 16 Metering Device Type: TXV |
| Compressor |
Quantity: 1 Type: Scroll Stage: Two |
| Sound Power (dBA) | 80 |
| Electrical Data |
Compressor RLA/LRA: 21.2 / 104.0 Voltage/Phase (60 Hz): 208-230 / 1 Indoor Blower FLA: 5.4 Outdoor Fan FLA: 1.4 M.C.A: 33.3 M.O.P: 50 |
| Operating Weight (LBS) | 405 |
| Shipping Weight (LBS) | 415 |
| Dimensions (W x D x H) | 66 x 34 x 35 inches |
| Duct Openings Dimensions |
Supply (W x H): 14 x 14 inches Return (W x H): 14 x 24 inches |
