MRCOOL 2.5 Ton Central Universal Air Conditioner and 80% AFUE, 60K BTU 17.5" Gas Furnace Split System - Upflow, Horizontal, or Downflow

The 2.5 Ton MRCOOL Central Air Conditioner and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system offers robust cooling through the MRCOOL condenser, combined with the efficiency of a gas furnace, delivering 80% AFUE with 60K BTU heating.

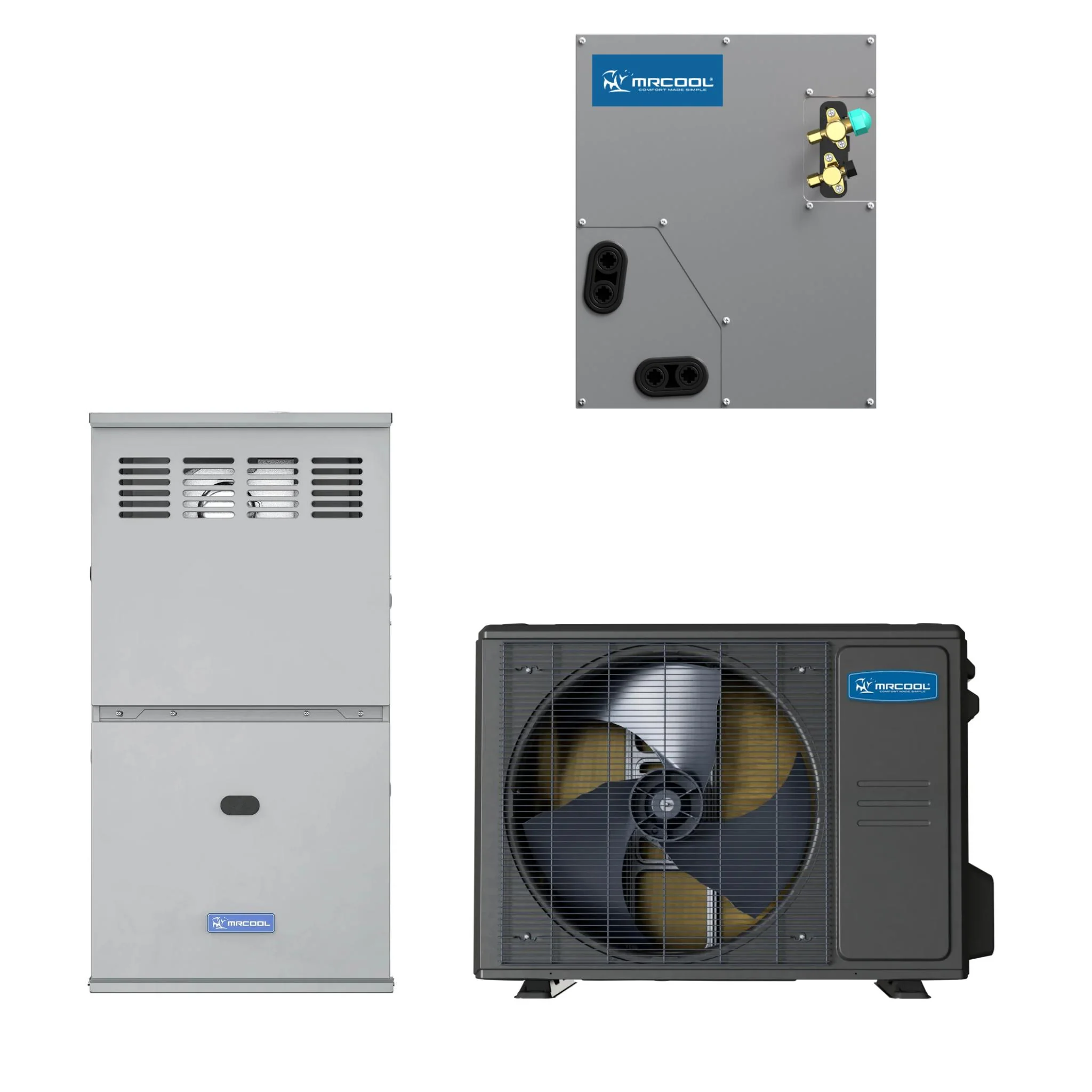

System Includes

• MRCOOL 2.5 Ton Universal Heat Pump Condenser

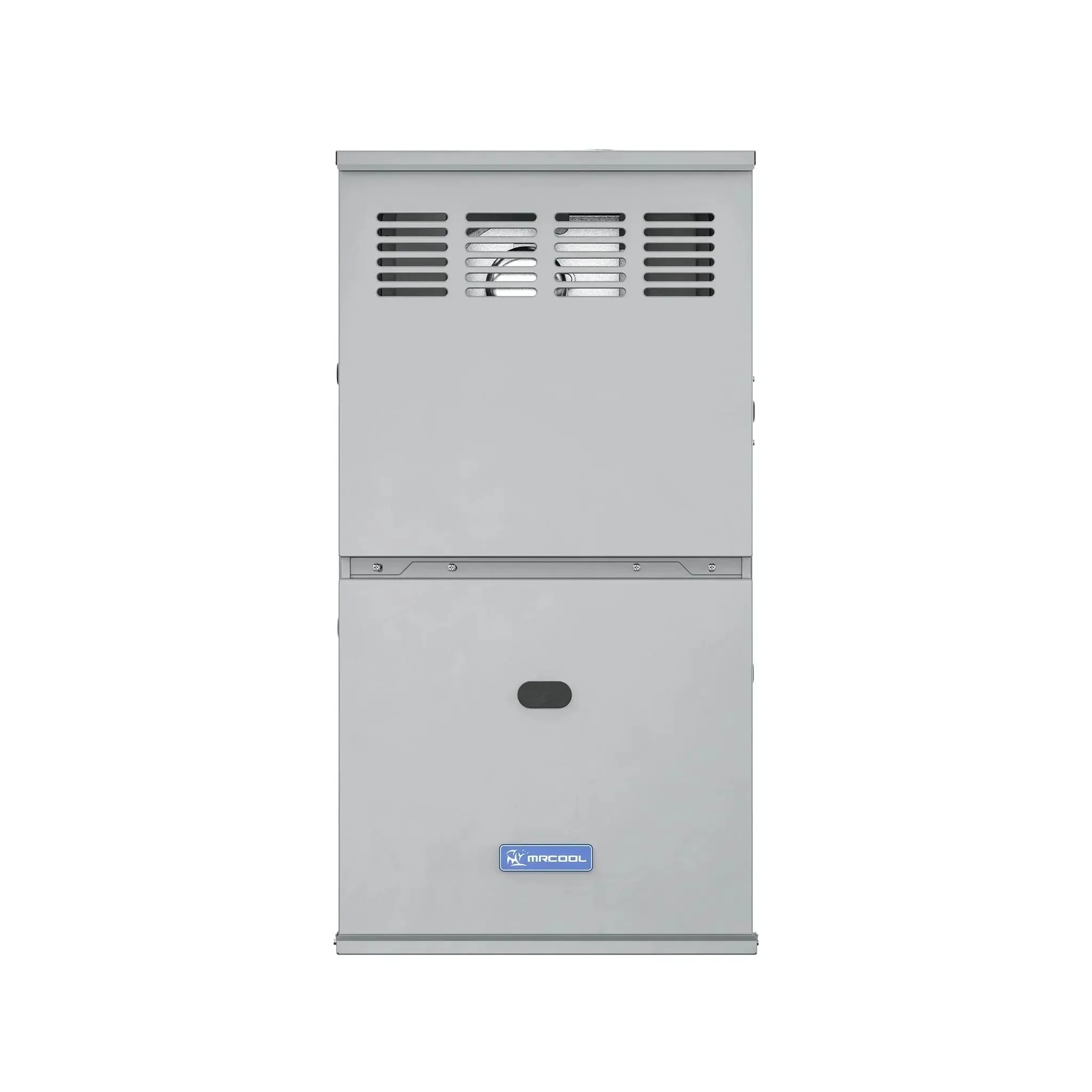

• MRCOOL 80% AFUE 60K BTU Multi-Position Furnace

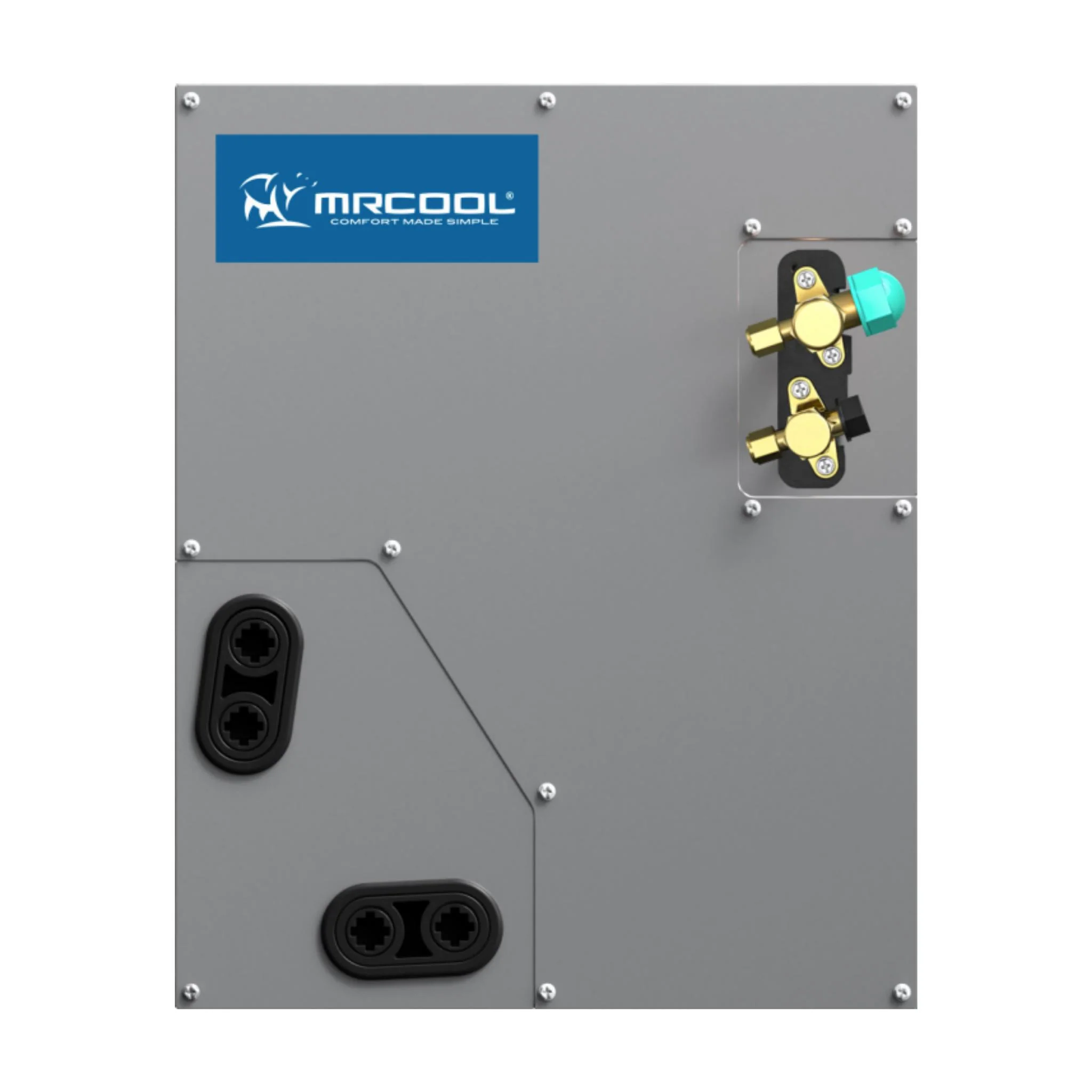

• MRCOOL 2.5 Ton A-Coil



Key Features

• Compatible with No-Vac Pre-Charged Line Sets
• Supports upflow, downflow, and horizontal left & right configurations
• Pre-charged coil eliminates the need for on-site charging
• A2L leak detection sensor for safety and peace of mind
• CoolGuard and Gold-Fin corrosion resistant casing
• Built in TXV

Materials	Gold-Fin corrosion-resistant condenser casing; aluminized steel burners and steel chassis on furnace; copper/aluminum coil construction
Dimensions (condenser)	37.00 in L x 18.63 in W x 32.25 in H (condensing unit)
Dimensions (furnace)	17.5 in cabinet width; multi-position furnace fits upflow, downflow or horizontal installations
Installation	Multi-position (upflow, downflow, horizontal left/right); compatible with No‑Vac pre-charged quick‑connect line sets, sweat or flare connections
Heating Performance	60,000 BTU input furnace at 80% AFUE (multi-position gas furnace)
Cooling Performance	2.5 Ton MRCOOL universal condenser (designed for 2–3 ton range) delivering ~30,000–36,000 BTU nominal cooling capacity depending on model configuration
Controls & Safety	Built-in TXV, A2L leak detection sensor (safety feature included)
Inclusions	Condenser, 80% AFUE 60K BTU multi-position furnace, 2.5 Ton A‑Coil (evaporator coil) included in system bundle
Warranty	Manufacturer registered limited parts warranty (registration may be required)
