MRCOOL 2.5 Ton Central Universal Air Conditioner and 96% AFUE, 80K BTU 17.5" Gas Furnace Split System - Upflow or Horizontal

The 2.5 Ton MRCOOL Central Air Conditioner and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system offers robust cooling through the MRCOOL condenser, combined with the efficiency of a gas furnace, delivering 96% AFUE with 80K BTU heating.

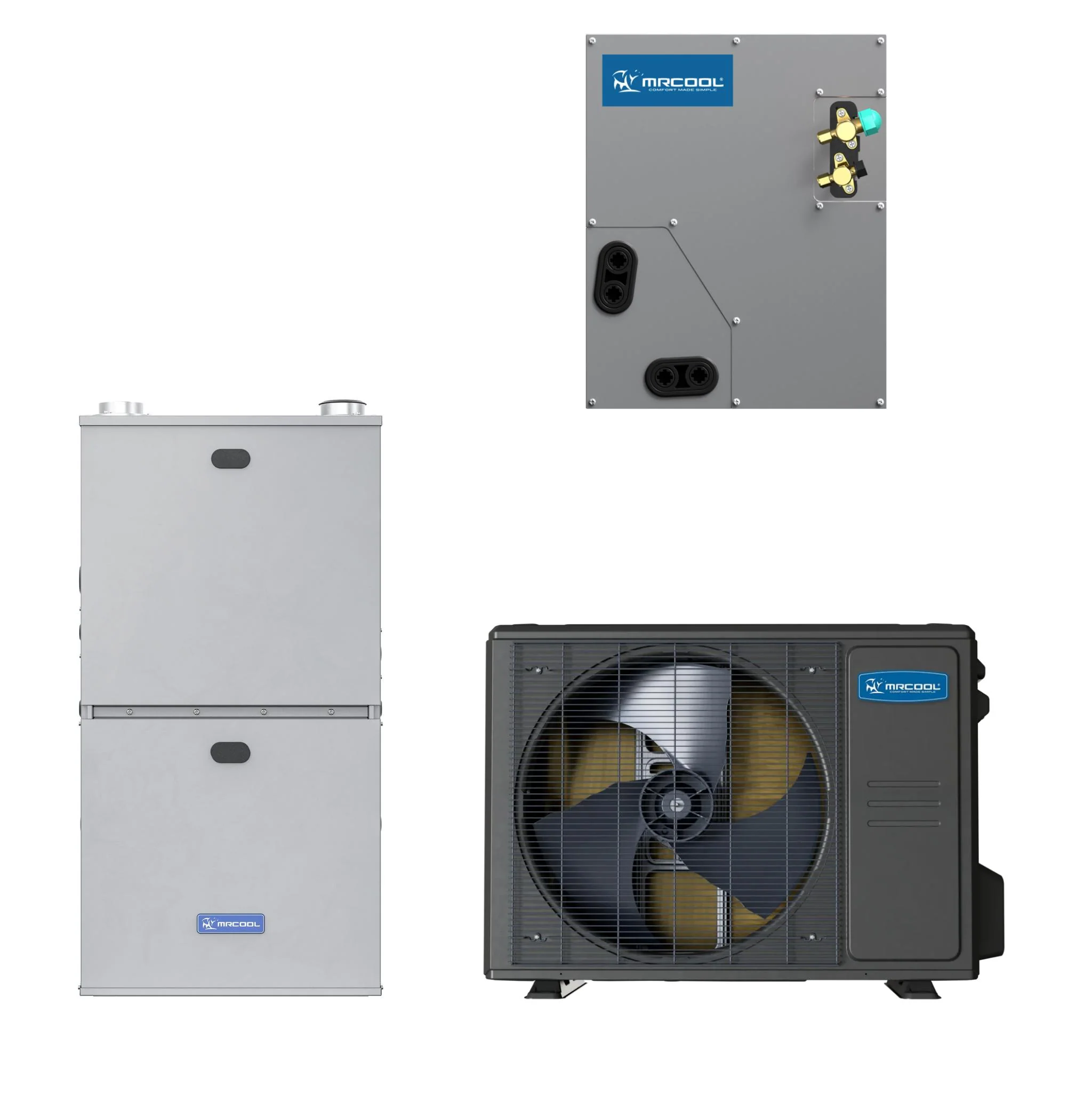

System Includes

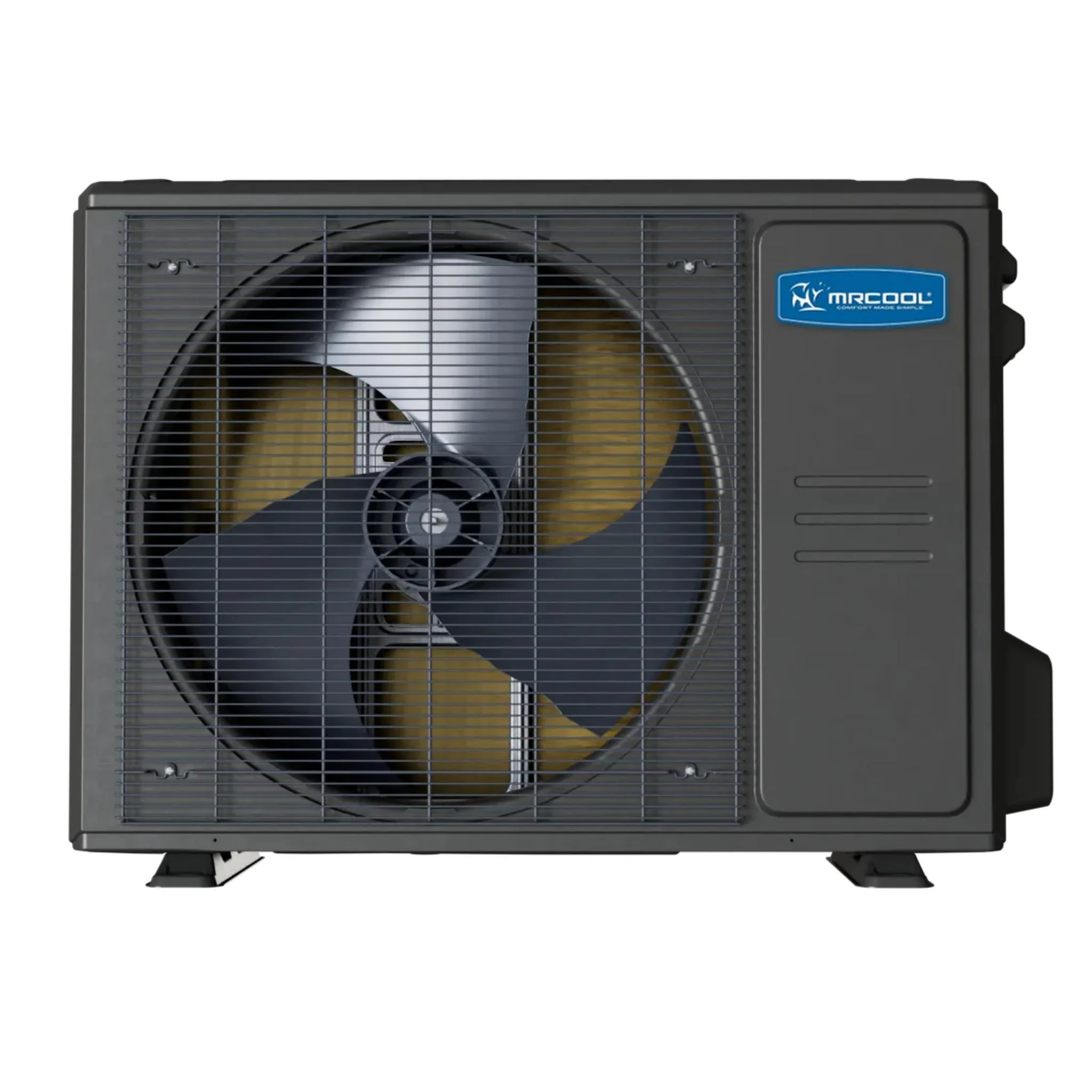

• MRCOOL 2.5 Ton Universal - Heat Pump Condenser

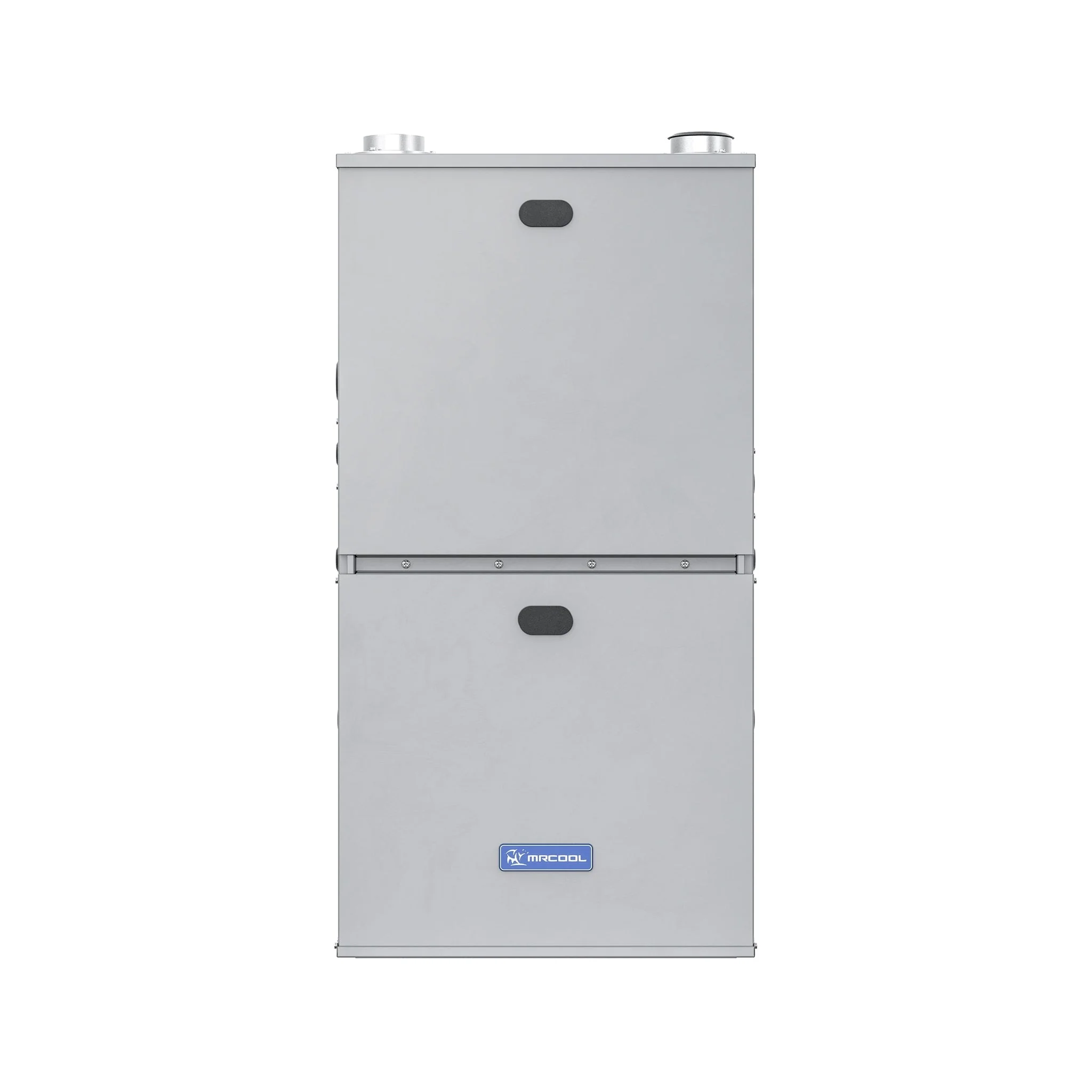

• MRCOOL 96% AFUE 80K BTU Multi-Position Furnace

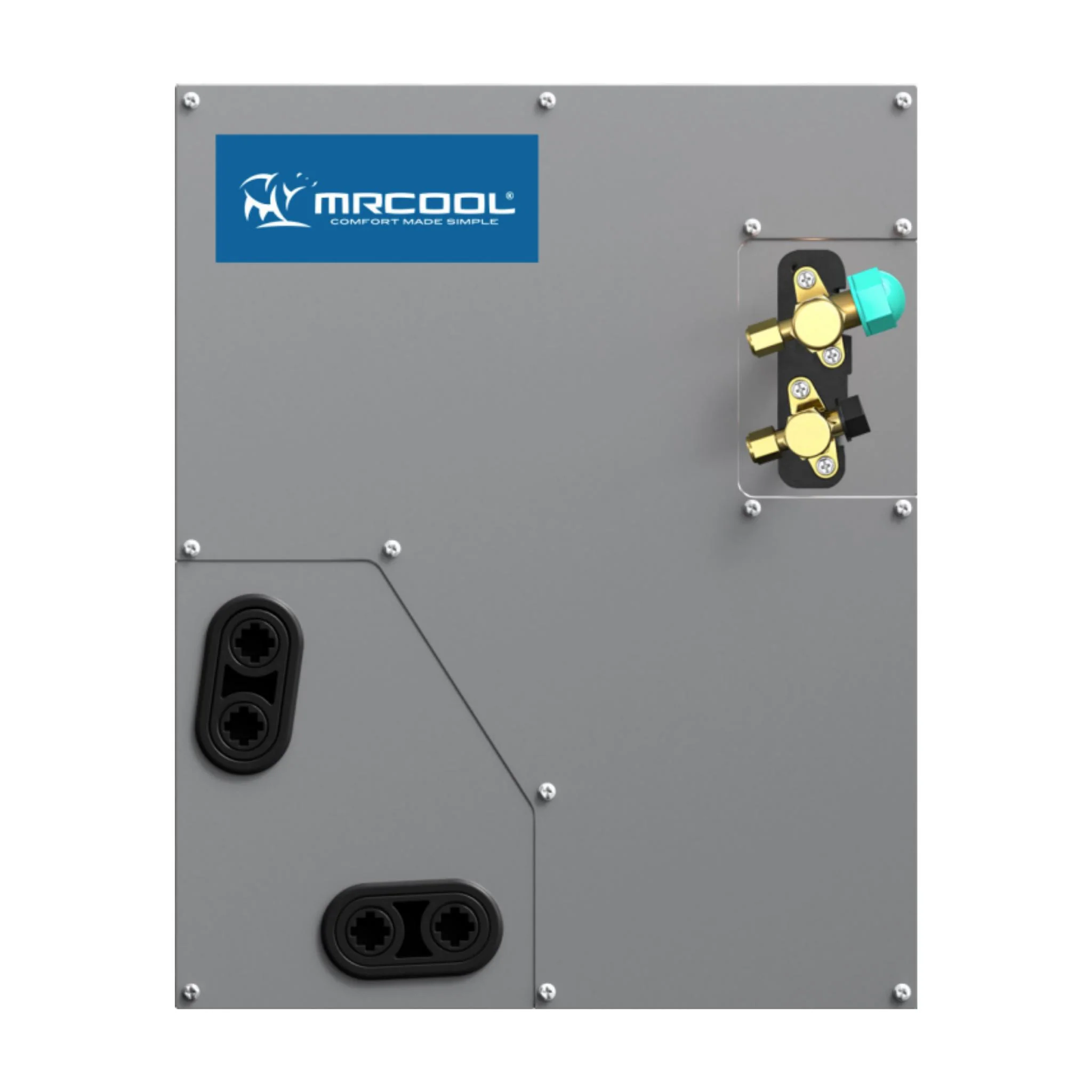

• MRCOOL 2.5 Ton A-Coil



Key Features

• Compatible with No-Vac Pre-Charged Line Sets
• Supports upflow, downflow, and horizontal left & right configurations
• Pre-charged coil eliminates the need for on-site charging
• A2L leak detection sensor for safety and peace of mind
• CoolGuard and Gold-Fin corrosion resistant casing
• Built in TXV

Materials	Gold-Fin condenser coating; CoolGuard corrosion-resistant casing; aluminized-steel furnace components (as typical for MRCOOL universal line)
Cooling capacity	2.5 Ton (approx. 30,000–36,000 BTU nominal); condenser selectable in field for 2–3 Ton range
Heating capacity	80,000 BTU furnace, 96% AFUE (efficiency rating applies to furnace)
Condenser dimensions (unit)	37.00 in length × 18.625 in width × 32.25 in height (condenser cabinet footprint)
Evaporator (A-coil) cabinet	Multi-position A-coil sized for 2.5 Ton universal series (17.5 in cabinet depth for matching furnace/coil)
Line set compatibility	No-Vac® pre-charged quick-connect line sets (15–50 ft available); also supports sweat or flare connections
Installation positions	Multi-position: upflow, downflow, horizontal left and right; supports standard multi-position furnace placement
Safety & controls	A2L leak detection sensor integrated (per product listing); built-in TXV for refrigerant control
Inclusions with system	Outdoor condenser, 96% AFUE 80K BTU multi-position gas furnace, matched 2.5 Ton A-coil (coil pre-charged when applicable)
Warranty & support	Factory limited parts warranty applies when registered (refer to MRCOOL warranty terms)
