MRCOOL 4 Ton Central Universal Air Conditioner and 96% AFUE, 80K BTU 21" Gas Furnace Split System - Upflow or Horizontal

The 4 Ton MRCOOL Central Air Conditioner and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system offers robust cooling through the MRCOOL condenser, combined with the efficiency of a gas furnace, delivering 96% AFUE with 80K BTU heating.

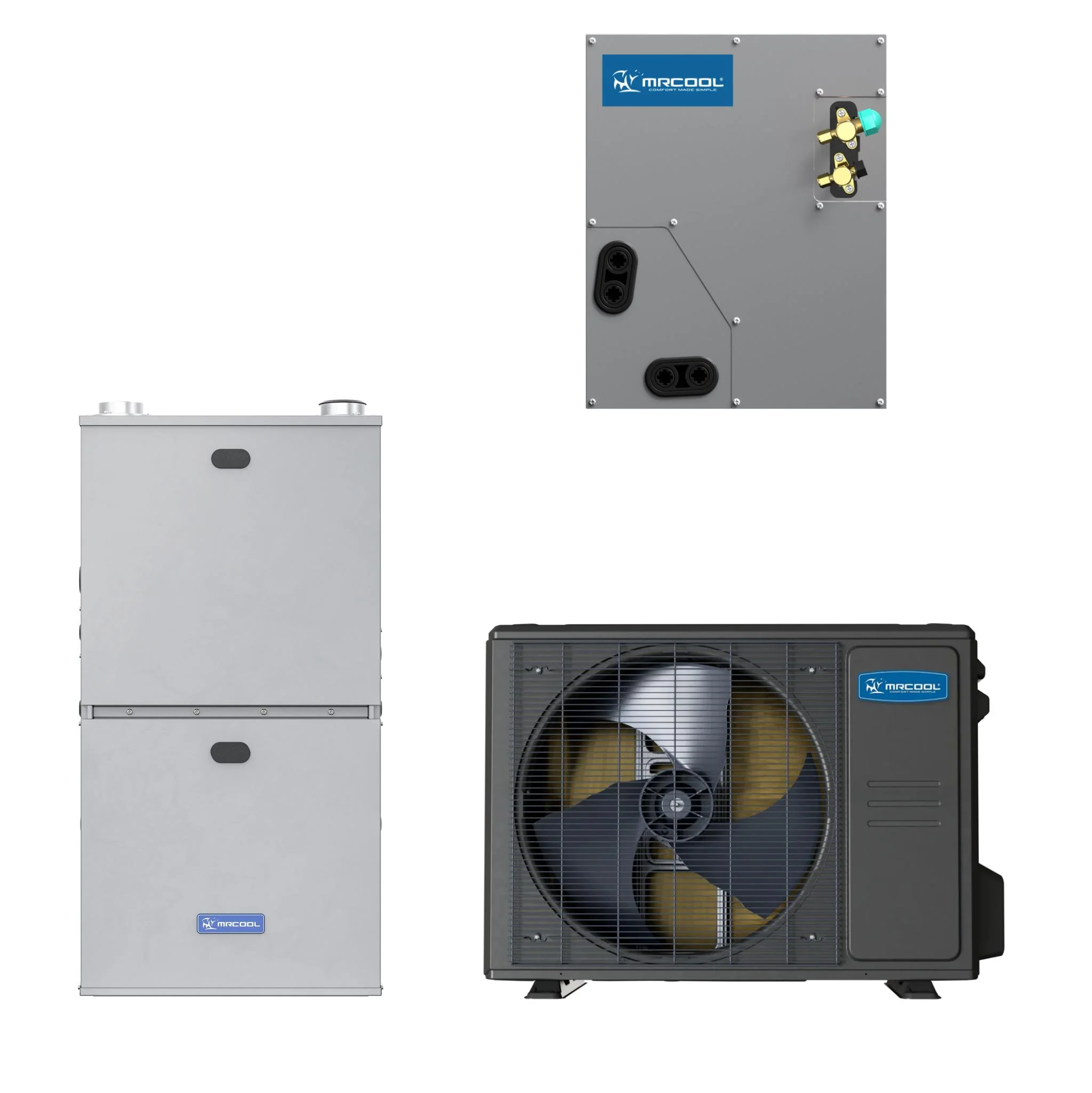

System Includes

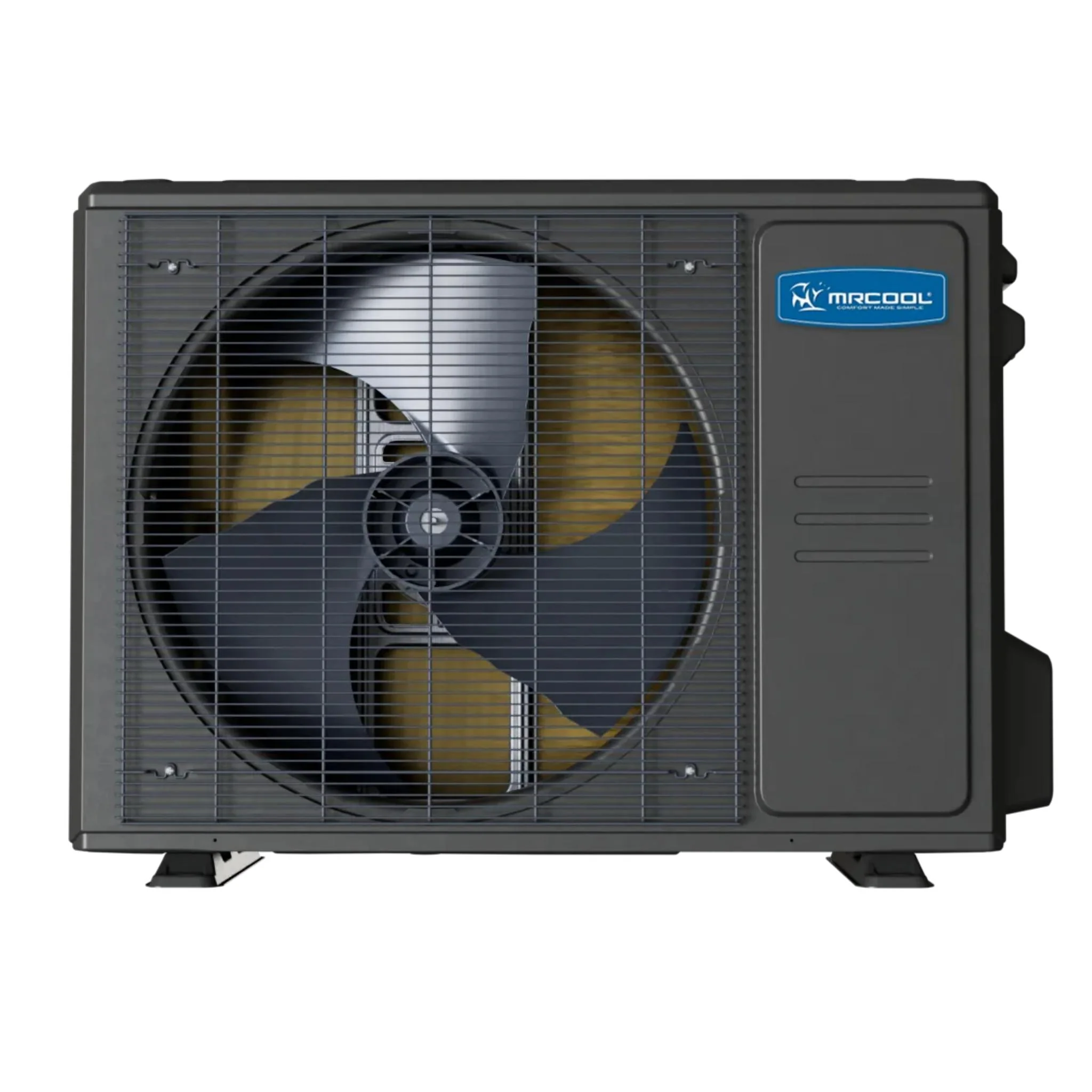

• MRCOOL 4 Ton Universal - Heat Pump Condenser

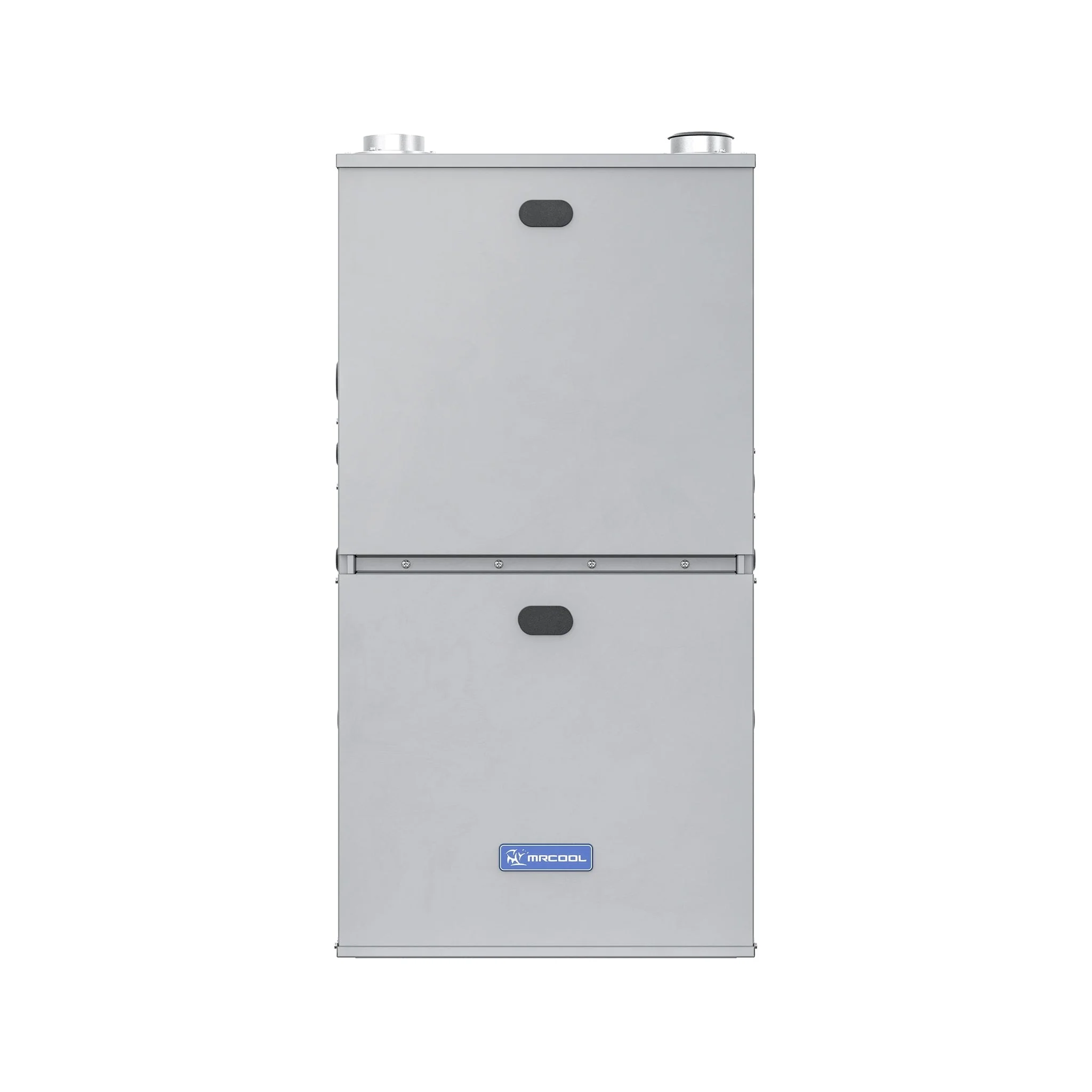

• MRCOOL 96% AFUE 80K BTU Multi-Position Furnace

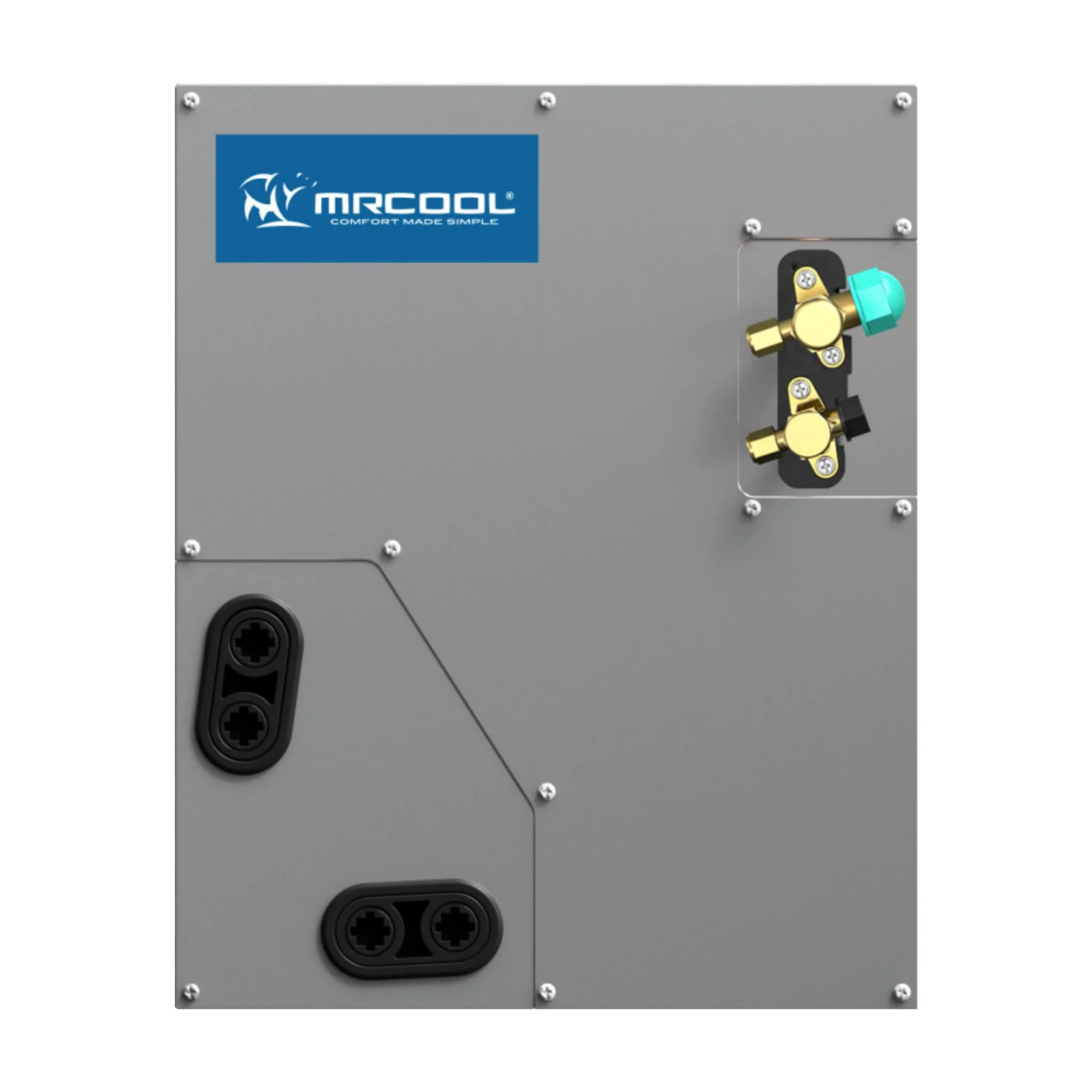

• MRCOOL 4 Ton A-Coil



Key Features

• Compatible with No-Vac Pre-Charged Line Sets
• Supports upflow, downflow, and horizontal left & right configurations
• Pre-charged coil eliminates the need for on-site charging
• A2L leak detection sensor for safety and peace of mind
• CoolGuard and Gold-Fin corrosion resistant casing
• Built in TXV

Materials	CoolGuard and Gold-Fin corrosion-resistant casing; protective metal coil and furnace cabinet
Dimensions (condenser gross)	59.25 in L x 45.375 in W x 19.375 in H
Weight (condenser gross)	337.3 lb
Cooling capacity	4 Ton (48,000 BTU) — field-configurable to 5 Ton (48,000–60,000 BTU)
Heating	96% AFUE multi-position gas furnace, 80,000 BTU
Refrigerant & coil	Factory pre-charged A-coil compatible with No‑Vac quick-connect line sets (no on-site refrigerant charging required)
Installation	Multi-position installation: upflow, downflow, horizontal left/right; supports No‑Vac quick connect, flared, or sweat connections; built-in TXV
