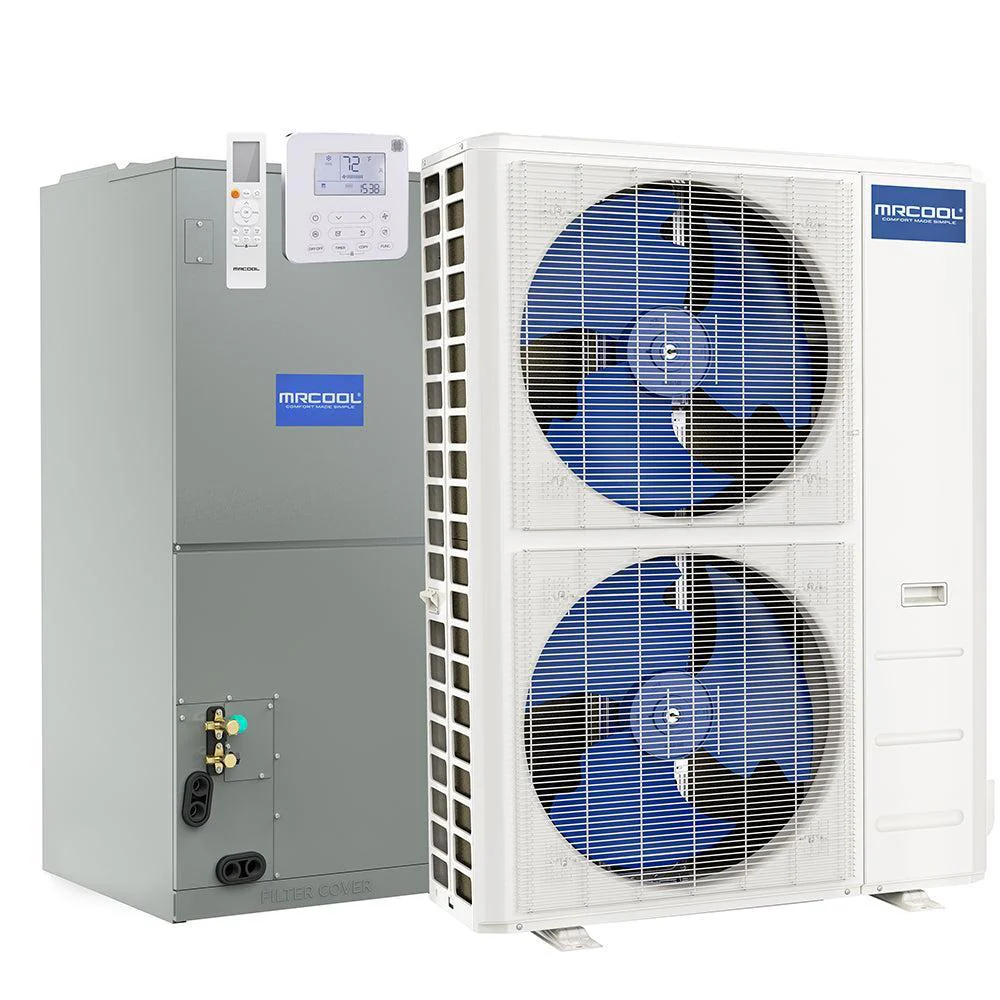

MRCOOL® 60k BTU 18 SEER Central Ducted Air Handler and Condenser

MRCOOL® 60k BTU 18 SEER Central Ducted Air Handler and Condenser

Choose the affordable MRCOOL 60k BTU up to 18 SEER Central Ducted DC Inverter Heat Pump System for the most efficient, consistent, and complete comfort you could experience. This system can heat and cool up to 2500 square feet, so your entire home can be covered in the precise temperature that you deserve. This system is able to accommodate any installation requirements you might have, because it is a multi-position unit that can operate in an upflow, downflow, horizontal left or right configuration. You’ll save money as this system provides you comfort, because the variable speed condenser works hard to provide the temperature you want and save energy. This system is compatible with the MrCool® No-Vac® Quick Connect® line set. The panel on the handler as well as the thermostat allow you to identify any error codes. You won’t have to worry if something goes wrong, because this system is covered by a 10 year parts warranty and a 10 year service warranty. If you want to feel true comfort without sacrificing your savings, get the MRCOOL 60k BTU 18 SEER Central Ducted DC Inverter Heat Pump System.

Features:

• Includes features such as timer mode, auto cool mode, fan only mode, and more

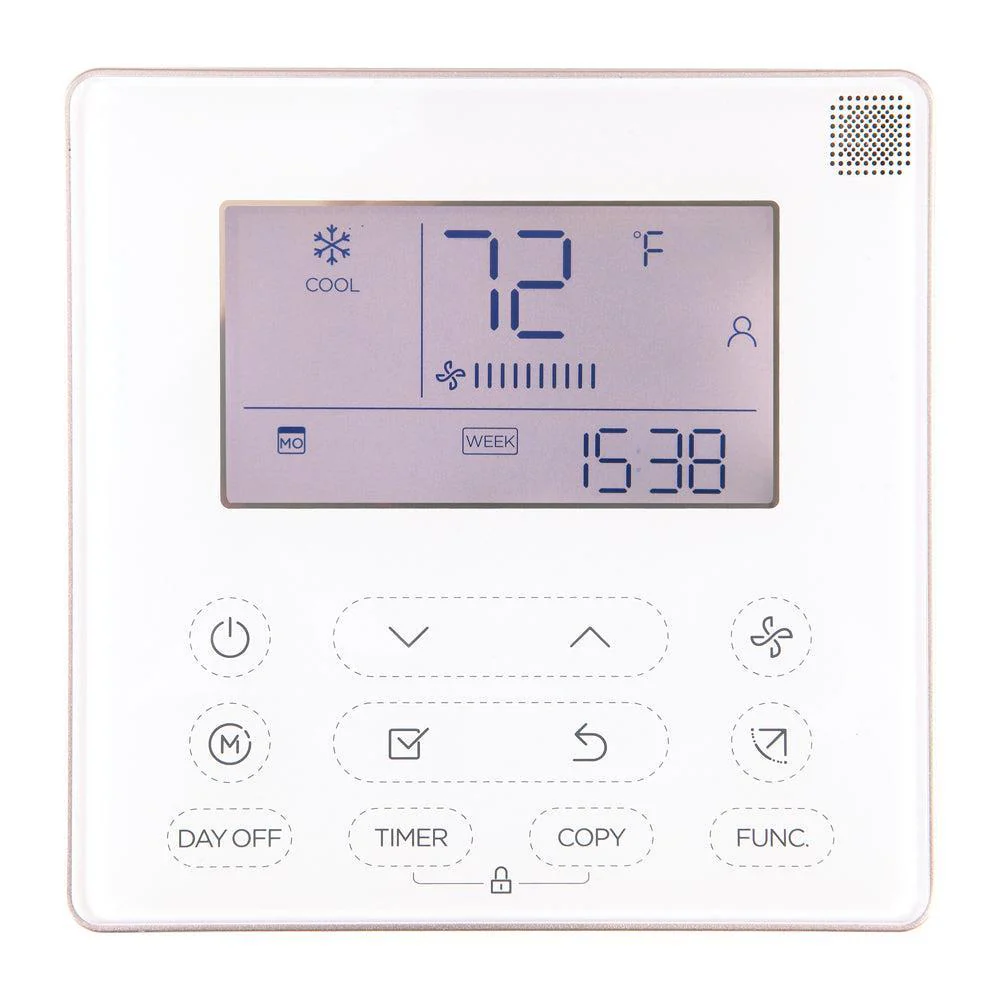

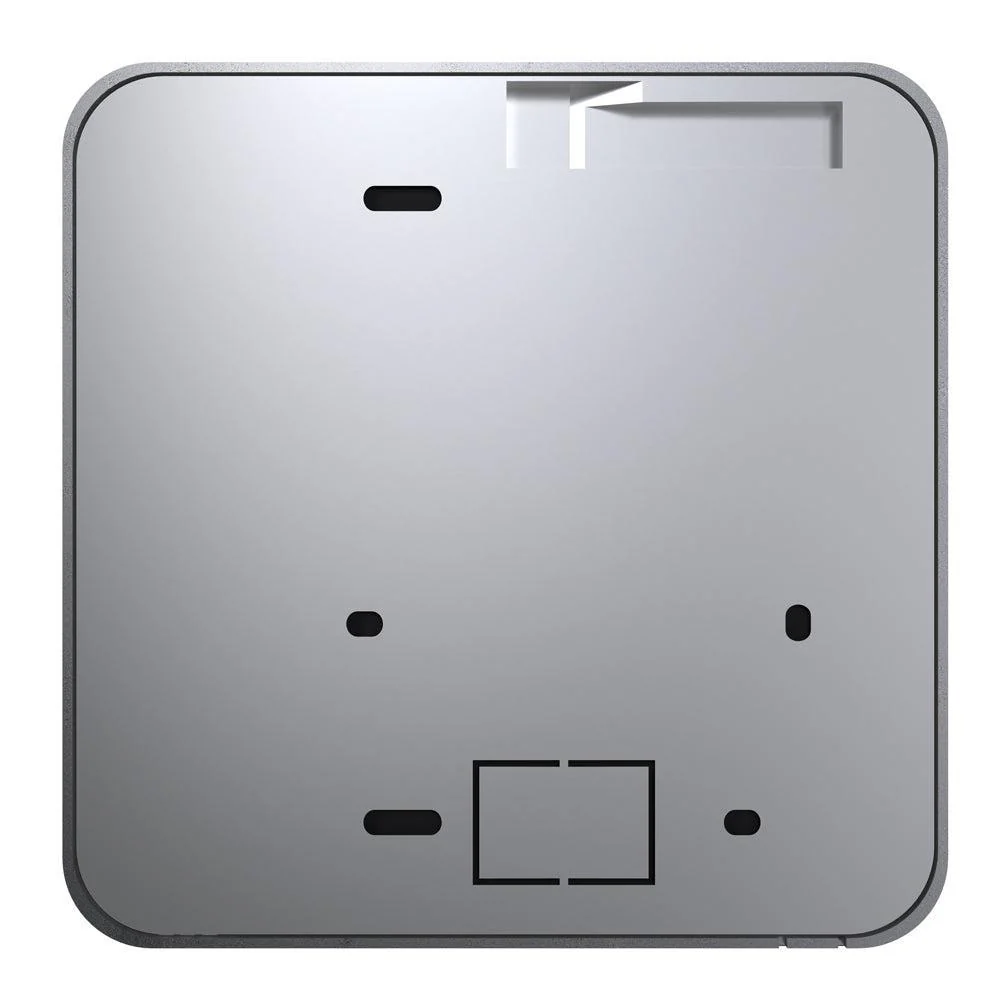

• Wired thermostat included (.78 in x 4.72 in x 4.72in)

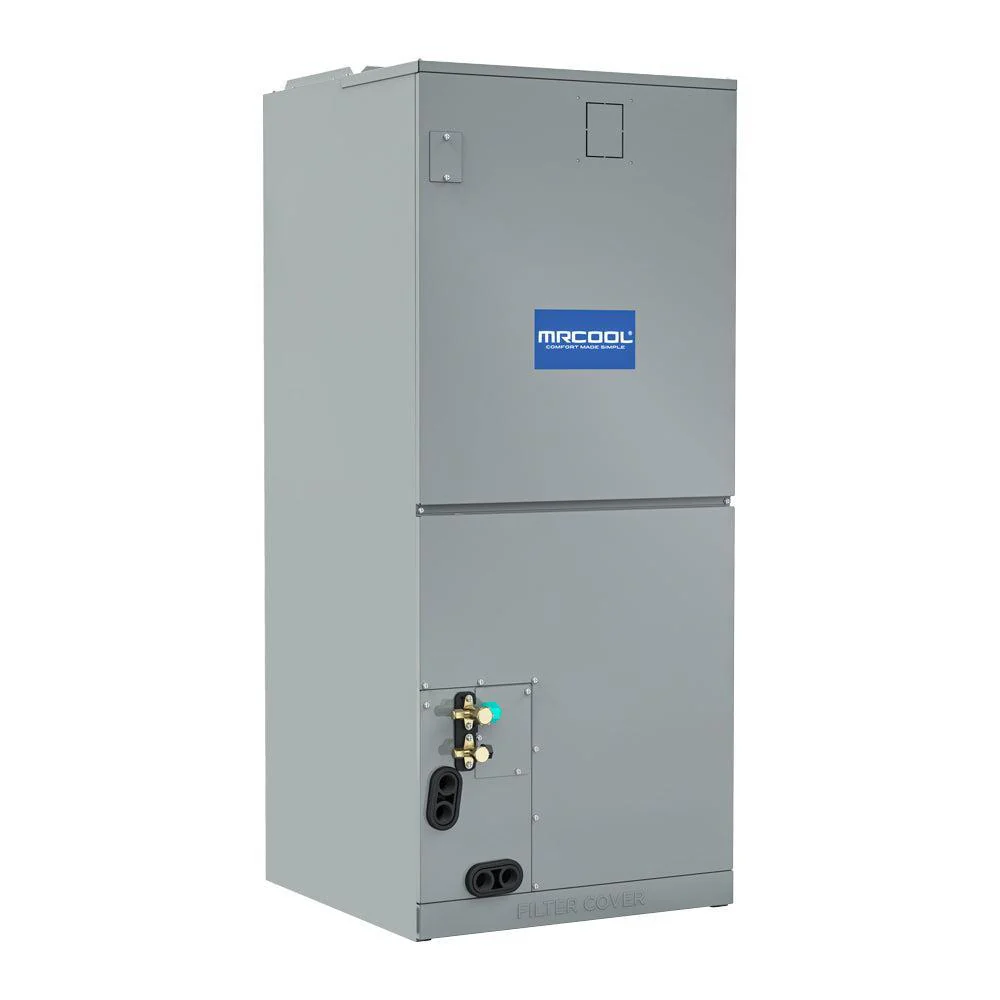

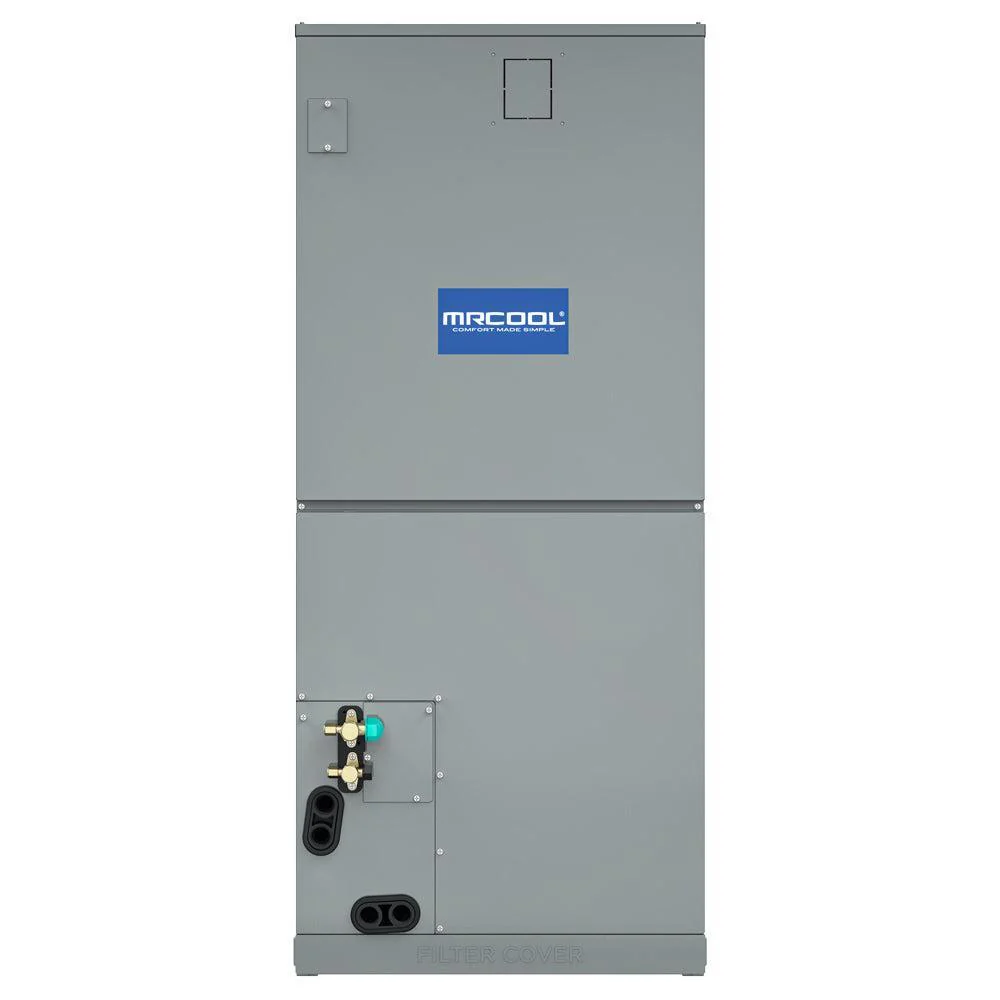

• Multi position installation

• Optional heating kit available

• R-410A environmentally friendly refrigerant

• 10 year parts and labor warranty*


Specifications:

BRAND	MRCOOL®
MODEL	CENTRAL-60-HP-230-00
UPC	840255522120
SEER	18
EER	10.3
HSPF	hspf4/hspf5: 9.2/7.6
CFM	1582.35/1358.82/1135.29
COOLING CAPACITY	57000
HEATING CAPACITY	60000
VOLTAGE	208/230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	60
MIN CIRCUIT AMPACITY	34
COLOR	Gray
RATED LOAD	2.4
ZONE CAPACITY	1
REFRIGERANT TYPE	R410A
REFRIGERANT VOLUME	172.84 oz
DECIBEL RATING	52.5/49/44
DECIBEL RATING LOW	44
DECIBEL RATING HIGH	52.5
AIR FLOW DIRECTION	Multi-position
MIN AMBIENT COOL	5~122F
MIN AMBIENT HEAT	5~75.2F
LINESET INCLUDED	No
LIQUID LINE SIZE	3/8 in
SUCTION LINE SIZE	7/8 in
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	900/850/650
FILTER TYPE	Replaceable
AUXILIARY HEATER INCLUDED	No
AUXILIARY HEATER AVAILABLE	Yes
AUXILIARY HEATER SIZES	10kw,15kw, 20kw
ADJUSTABLE THERMOSTAT	Yes
FAN ONLY OPTION	Yes
SLEEP MODE	Yes
AUTO COOL	Yes
APP COMPATIBILITY	No
REMOTE CONTROL INCLUDED	Yes
AHRI CERTIFIED	Yes
BASE WARRANTY	10 years parts and labor
CONDENSER DEPTH	16.34 in
CONDENSER HEIGHT	52.48 in
CONDENSER WIDTH	37.48 in
CONDENSER WEIGHT	217.59 lbs
AIR HANDLER DEPTH	24.49 in
AIR HANDLER HEIGHT	52.99 in
AIR HANDLER WIDTH	21.02 in
AIR HANDLER WEIGHT	164.02 lbs

Product Information and Guides:

• Brochure
• Install Manual
• Specs
• Remote Manual
• Service Manual
• Warranty Doc
• Accessory Manual
• AHRI Certs
