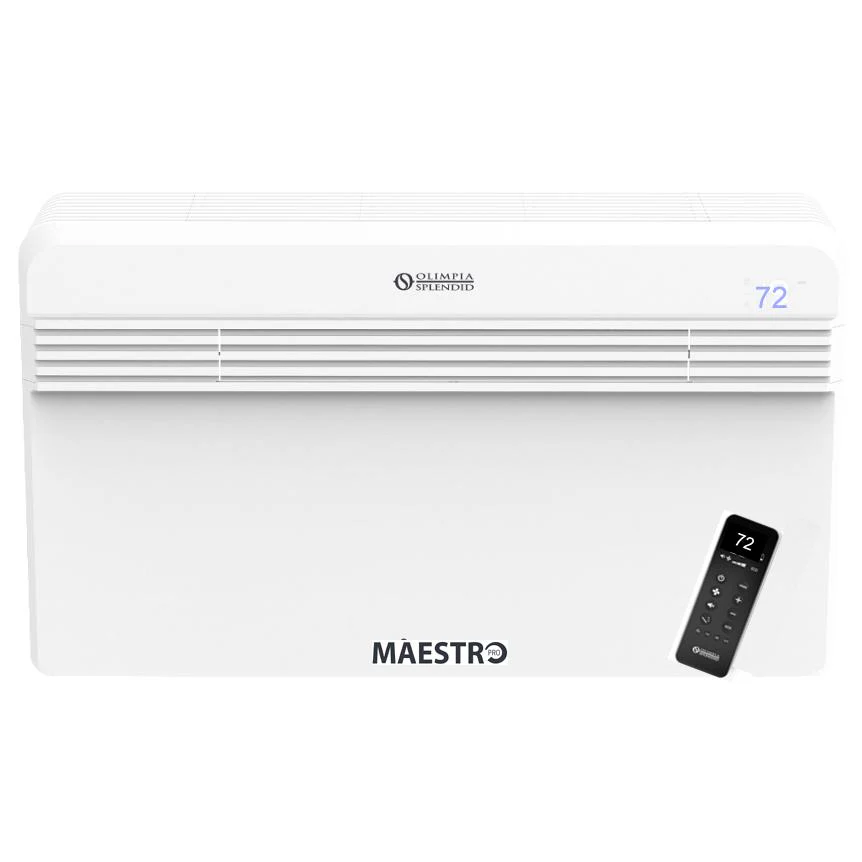

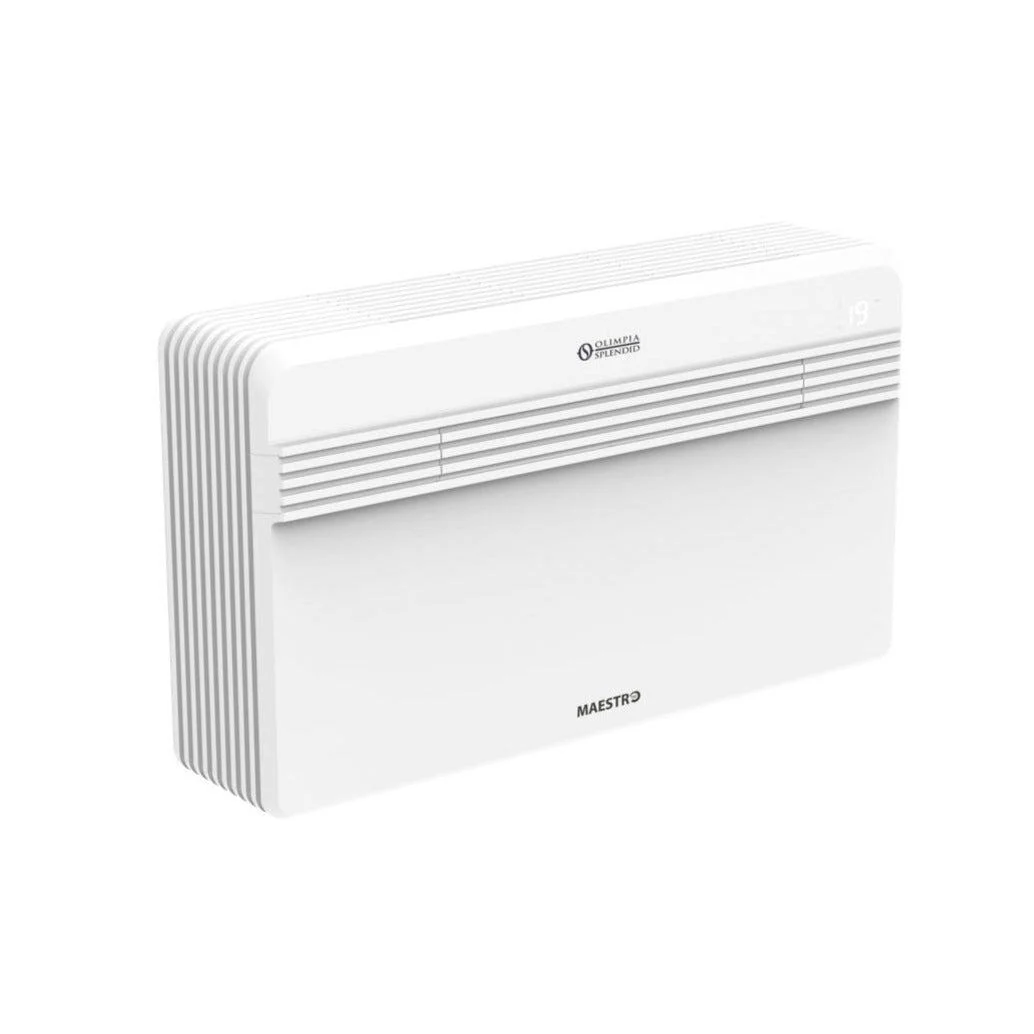

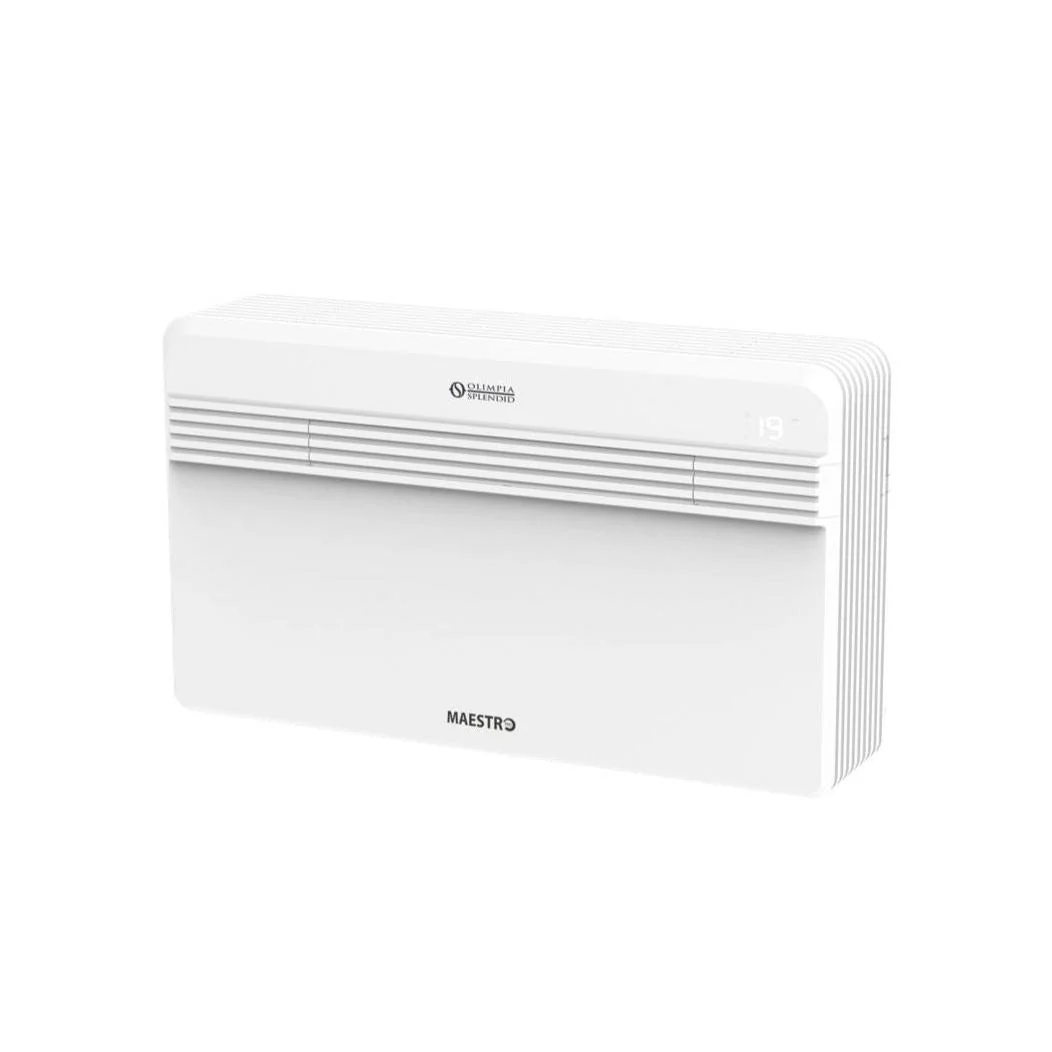

Olimpia Splendid Maestro Pro Inverter 12 Heat Pump 12,000 BTU 230V
Olimpia Splendid Maestro Pro Inverter 12 Heat Pump 12,000 BTU 230V Variable Speed Through-the-Wall Air Conditioner with Heat and Remote - Includes Condensate Pan Heater
The Olimpia Splendid Maestro Pro Inverter 12 Heat Pump heating and cooling system has no outdoor unit! It can be installed from inside the room and has no impact on the aesthetics of buildings. Its unique “splitless” and “windowless” application makes it the ideal comfort solution, providing year round comfort and whisper quiet operation, with a one of a kind Made in Italy stylish design. With a cooling capacity of up to 11,600 BTUH, Maestro Pro’s leading inverter compressor technology provides unparalleled comfort in heating and cooling as well as operating cost savings for both residential or commercial applications.
Features:
Industry Leading Warranty: One Year Replacement Warranty, Two Year Parts Warranty, Seven Year Compressor Warranty
Installation Versatility: Place it anywhere on your wall

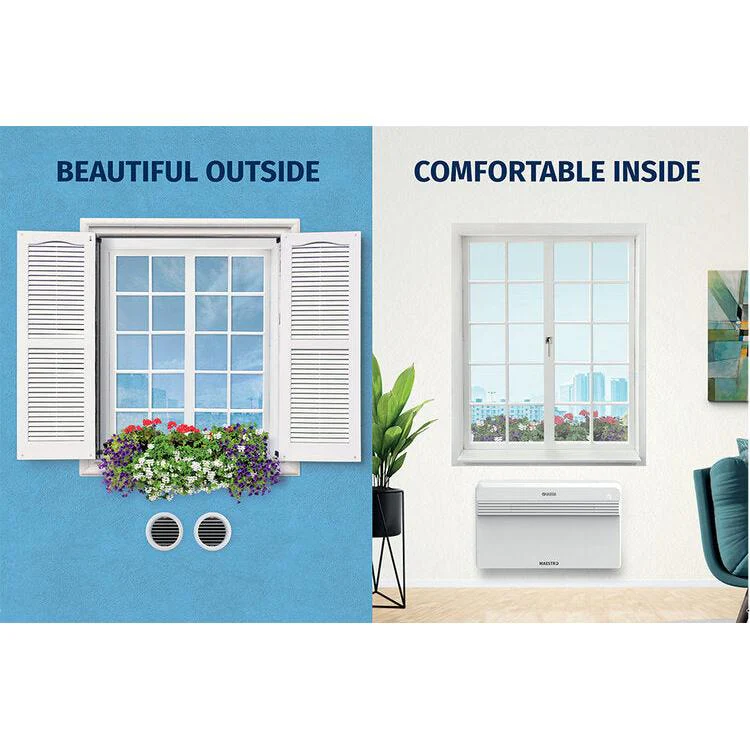

Ease of Installation: The Maestro installation can be done entirely from the inside of the room requiring only two (8”) wall penetrations made with a core drill on the outside wall, and there are only two louvred grilles covering the holes with no architectural impact.

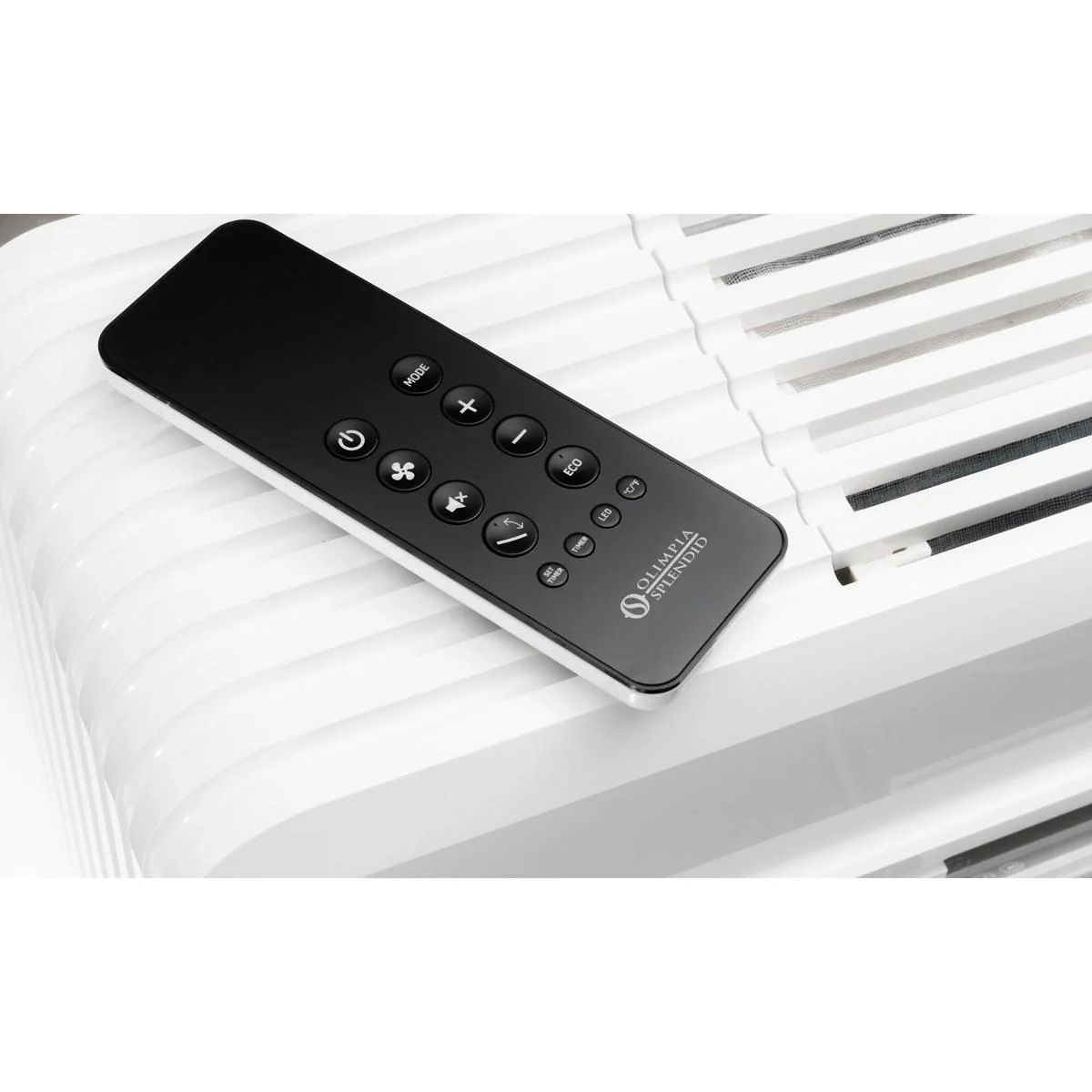

Simple Comfort Control: Maestro can be operated either with the handheld remote controller, or with the Maestro App from a smart phone via Wi-Fi or Bluetooth (requires Wi-Fi Kit.) Maestro Pro models also have an onboard touch screen display.

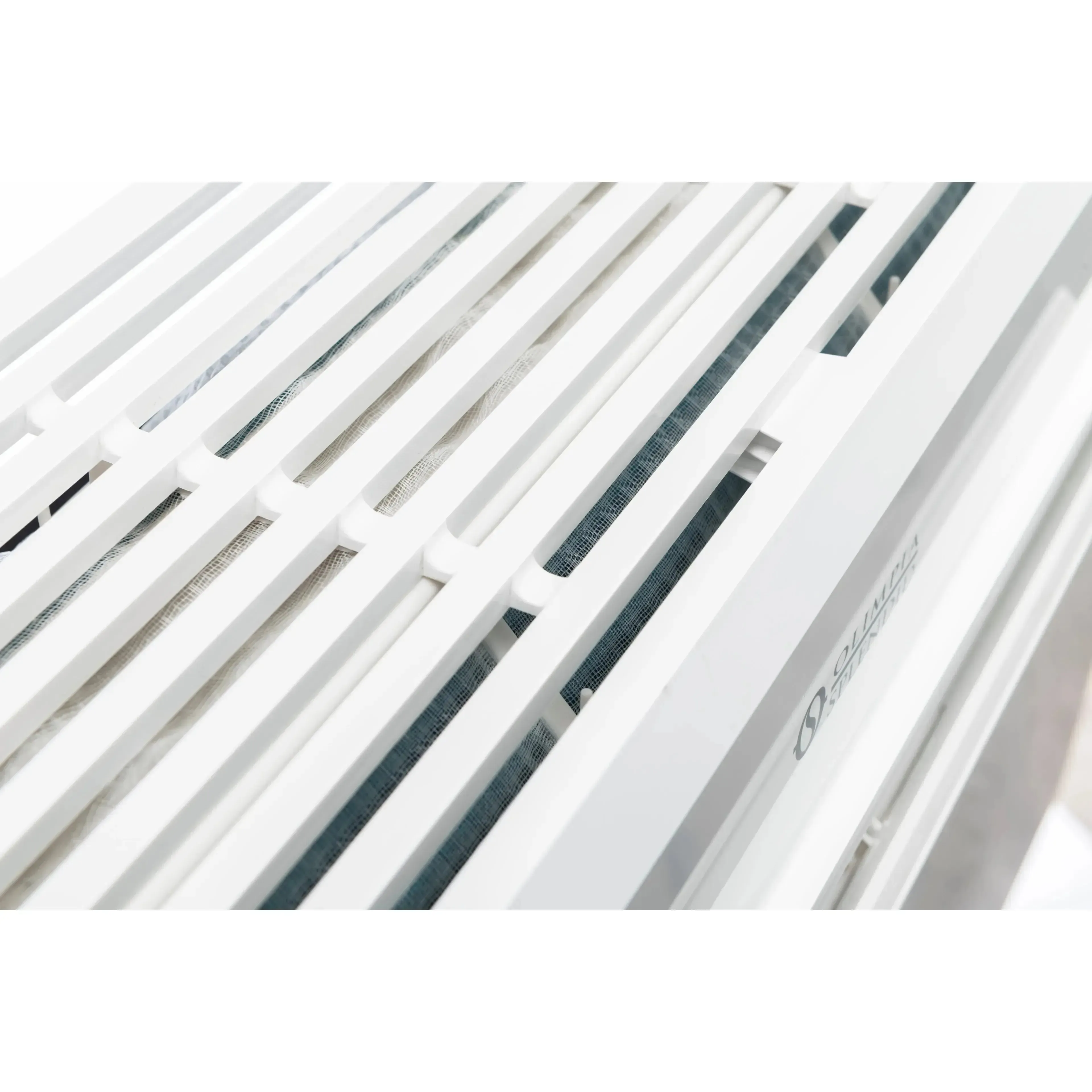

Rotating Flap: Provides total air diffusion for consistent temperature throughout the space.
24 Hour Timer: Set specific times of the day for heating and cooling
Backlite Display: On-board touch control
Dehumidification Mode: Controls humidity during mild ambient conditions for increased comfort
Fan Mode: Variable speed motor maintains a consistent temperature throughout the conditioned space
Economy Mode: Allows for energy saving by automatically optimizing the unit’s performance
Auto Mode: Adjusts comfort settings based on ambient conditions.
Sleep Mode: Gradually increases the temperature setpoint ensuring whisper quiet operation, greater comfort and energy savings while you sleep.
Silent Mode: Allows the user to set the system to minimum sound level.

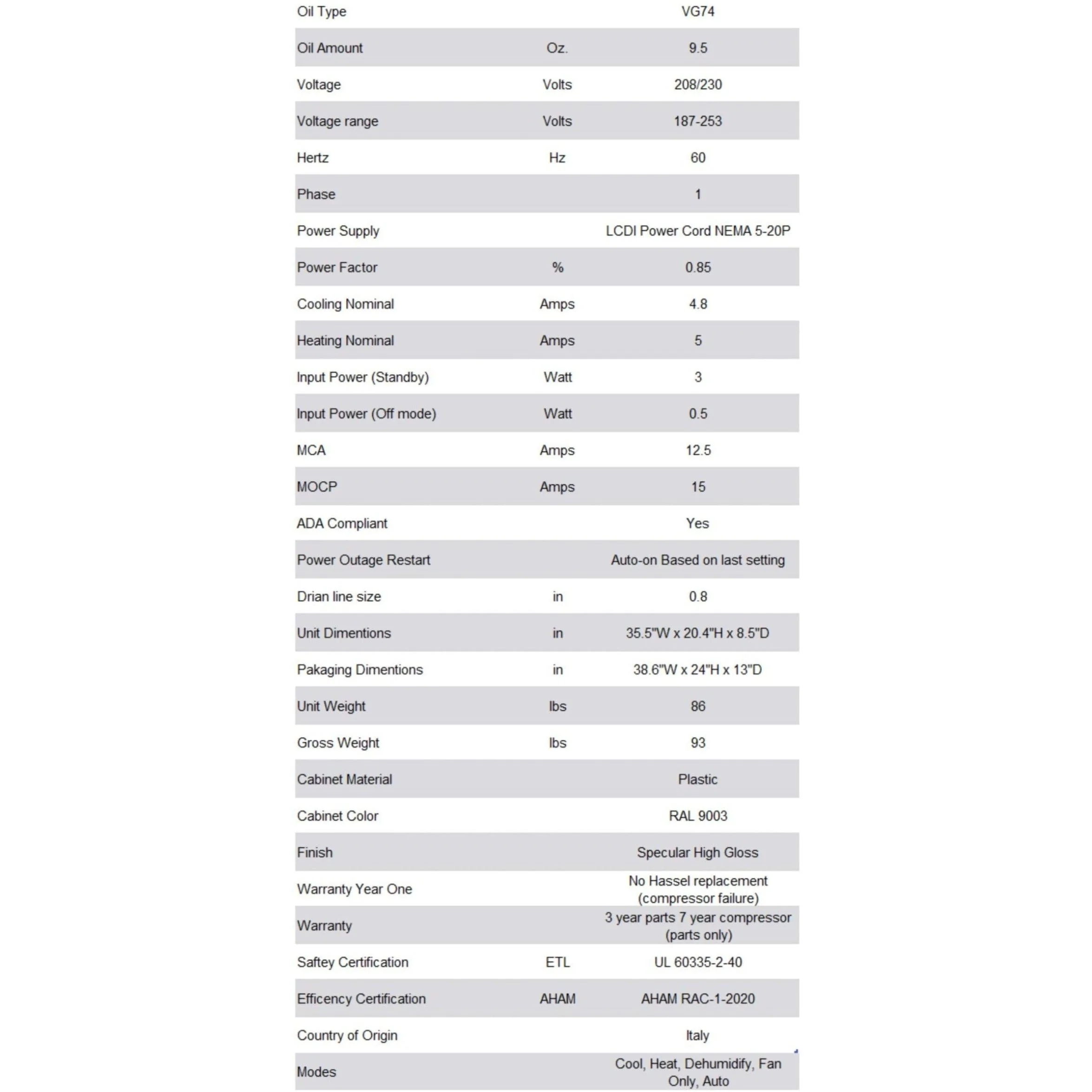

Specifications:
Brand |
Olimpia Splendid |
Model |
02283 |
Power Supply (Min 109V, Max 127V) |
208/230-1-60 (V-ph-Hz) |
Rated Capacity for Cooling / Max Capacity for Cooling (1) |
8,150 / 11,600 Btu/h |
Rated Capacity for Heating / Max Capacity for Heating (3) |
8,150 / 10,600 Btu/h |
Rated Power Input for Cooling Mode (1) |
810 Watts |
Rated Power Consumption - Heating Mode (3) |
850 Watts |
Maximum Power Consumption - Cooling Mode (2) |
1400 Watts |
Maximum Power Consumption - Heat Pump Only (3) |
1400 Watts |
Maximum Power Consumption - Resistance Heat Only |
N/A |
Combined Energy Efficiency Ratio Cooling Mode |
10.0 CEER |
Rated Efficiency Energy Ratio (1) |
10.1 BTU/h/W |
Rated Coefficient of Performance (3) |
3.6 BTU/h/W |
Dehumidification Capacity |
3.0 Pints/hr |
Indoor Fan Air Volume in Cooling Mode (Max/Med/Min) |
290/230/200 |
Indoor Fan Air Volume in Heating Mode (Max/Med/Min) |
290/230/200 |
Outdoor Fan Speeds (Max/Min) |
350/70 |
Venting Holes Diameter (Two Holes Required) |
8 inches |
Maximum Remote Control Range |
33 Feet |
Dimensions without packaging (W x H x D) |
35.5 x 20.4 x 8.5 inches |
Dimensions with packaging (W x H x D) |
38.6 x 24.0 x 13.0 |
Weight without packaging |
86 lbs |
Wight with packaging |
93 lbs |
Sound level (5) |
Min: 33, Max: 42 dB(A) |
Refrigerant |
R-410A |
Refrigerant Factory Charge |
1.50 lb |
Maximum Operating Temperature in Cooling Mode (Indoor) |
DB 95°F - WB 75°F |
Maximum Operating Temperature in Cooling Mode (Outdoor) |
DB 109°F - WB 90°F |
Minimum Operating Temperature in Cooling Mode (Indoor) |
DB 64°F |
Minimum Operating Temperature in Cooling Mode (Outdoor) |
DB 14°F |
Maximum Operating Temperature in Heating Mode (Indoor) |
DB 81°F |
Maximum Operating Temperature in Heating Mode (Outdoor) |
DB 75°F - WB 64°F |
Minimum Operating Temperature in Heating Mode |
DB 5°F |
Installation Video:
Product Information and Guides:
Original: $4,479.00
-70%$4,479.00
$1,343.70Product Information
