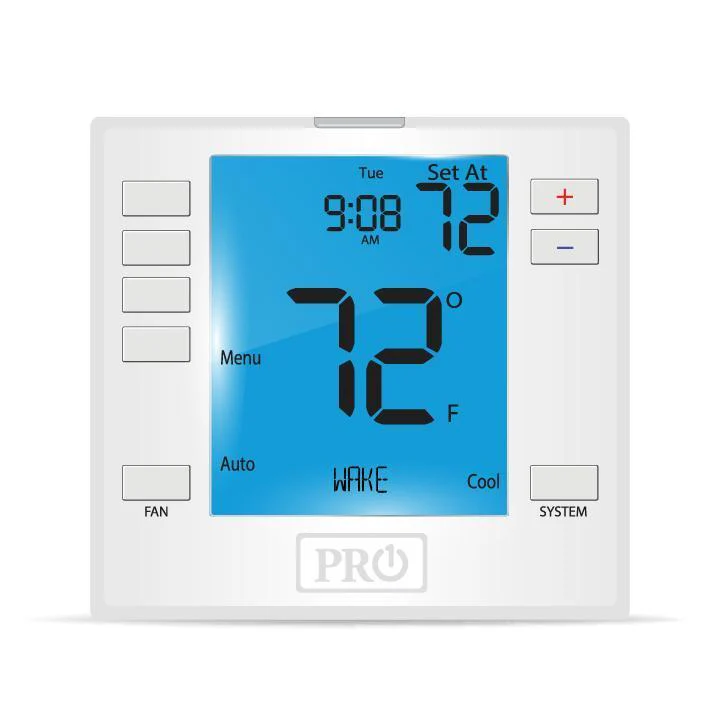

Pro1 IAQ T755 3 Hot/2 Cold 7 Day Programmable Thermostat

Pro1 IAQ T755 3 Hot/2 Cold 7 Day Programmable Thermostat

The Pro1 IAQ 700 family of thermostats offers the most commonly desired features at a great value. These models are easy to use and will provide years of reliable service.

Features:

• 7 Day, 5/1/1 Programmable or Non-Programmable
• 7 sq. inch display
• Blue backlight
• Glow in the dark light button
• Easy access battery compartment
• Universal subbase
• Simple private label badge system
• Setpoint limits
• Electric or gas congurable
• Mounts on wall or junction box
• Auto-changeover
• PTAC capable
• 5 Year Warranty
• 5 minute compressor delay protection   (selectable on or o )
• Customizable staging logic
• Separate heating and cooling   swing (cycle rate) adjustments
• Battery or 24V power
• Room temperature calibration adjustments
• Easy wire color coded terminal blocks
• Three speed fan

Specifications:

Brand	Pro1 IAQ
Model	T755
Application	Up to 2 Heat 2 Cool Conventional, 3 Heat 2 Cool Heat Pump
Programmability	7 Day, 5/1/1 or Non-Programmable
System Switch	Cool - Off - Heat- Auto
Display Range	41˚F to 95˚F (5˚C to 35˚C)
Control Range	44˚F to 90˚F (7˚C to 32˚C)
Display Accuracy	+/- 1˚F
Heat Swing	Adjustable from 0.2˚F to 2.0˚F
Cool Swing	Adjustable from 0.2˚F to 2.0˚F
Terminals	Rc, Rh, G, Y, Y2, C, O, B, W/E, W2
Load Rating	1 amp per terminal, 1.5 amp maximum all terminals combined
Power Source	18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline  batteries
Operating Ambient	32˚F to +105˚F (0˚C to +41˚C)
Operating Humidity	90% non-condensing maximum
Mounting	Wall or Junction Box
Dimensions	4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D)
Warranty	5 year warranty
Resources	Installation Manual Operation Manual Submittal Sheet Brochures Linecard
