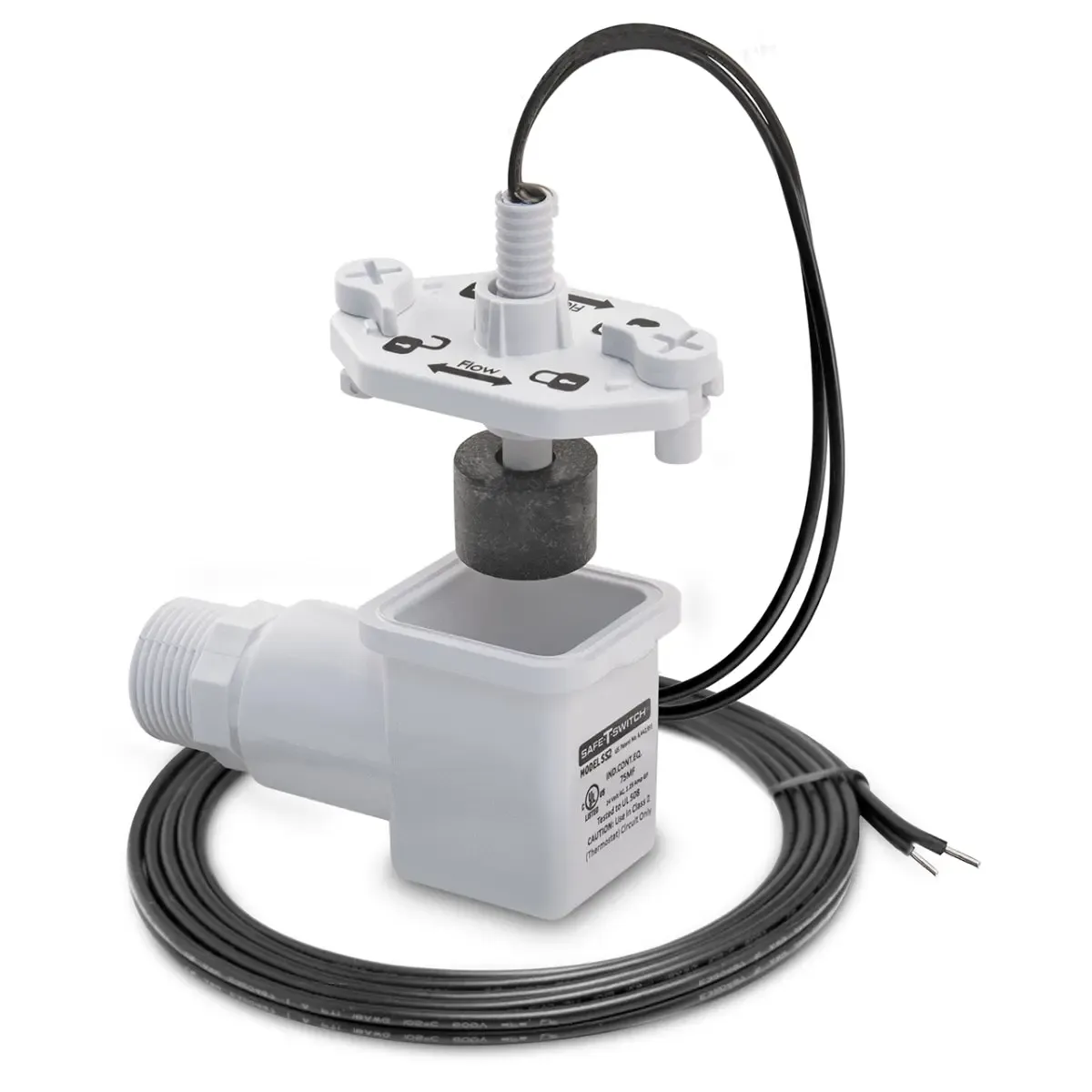

Rectorseal 97087 Ss2 3rd Generation Safe-T-Switch
Rectorseal 97087 Ss2 3rd Generation Safe-T-Switch
Shut-off switch for primary drain pan auxiliary outlet, Safe-T-Switch Model SS2, detects clogged A/C condensate drains and shuts off system to prevent water damage. Can be installed on the auxiliary outlet of the primary drain pan, using the included 3/4" adapter. Float sensitivity can be easily adjusted without removing the cap. Easy access to the switch for service. Cap is secure and easily removed and reinstalled with tapered cams. Connect to either red or yellow wire.
Features:
- Condensate overflow switch
- Adjustable ratcheting float level
- Magnetic reed switch
- POP Blister packaged
Technical Details:
| Brand | Rectorseal |
| Part Number | 97087 |
| Warranty | 3 Years |
| Operation Mode | ON-NONE-ON |
| Contact Type | Reed |
| Terminal | Virtual |
| Mounting Type | Panel Mount |
| Actuator Type | Float |
| Contact Material | Plastic |
| International Protection Rating | IP00 |
| Number of Positions | 2 |
| Control Method | Touch |
| Connectivity Protocol | Wi-Fi |
| Color | White |
| Package Dimensions | 10.31 x 8.19 x 1.69 inches |
| Item Weight | 5.6 ounces |
| Resources |
