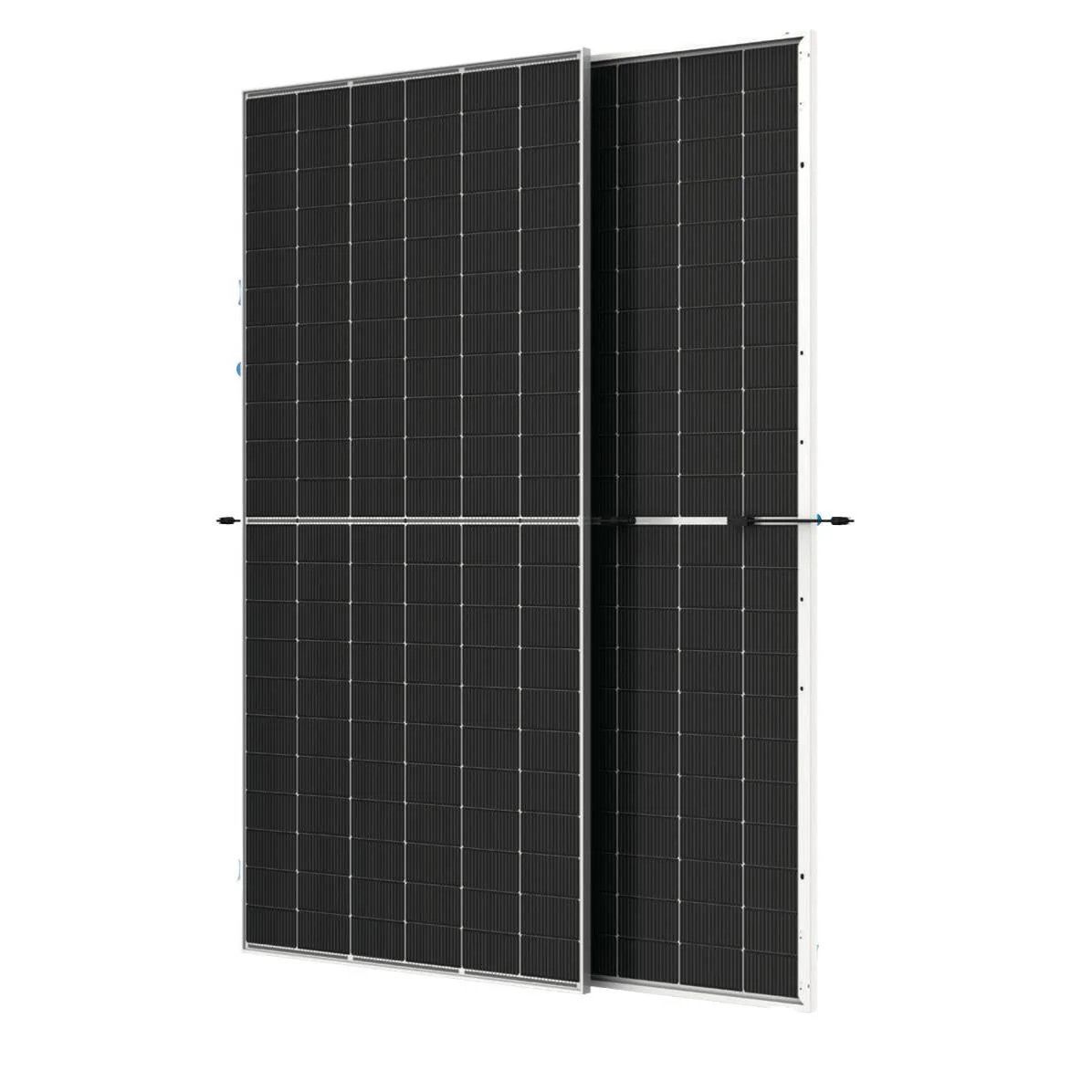

Trina 615W (Pallet of 36) Vertex N N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG19RC.20
Trina 615W (Pallet of 36) Vertex N N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG19RC.20
Pallet Only – 36 Panels
Key Technology
-
N-Type i-TOPCon Cells: Higher carrier lifetime, lower LID/LeTID, and improved long-term yield.
-
High Density Interconnect + SMBB Design: Super Multi-Busbar technology enhances light trapping and reduces resistive losses for higher output.
-
Bifacial Dual-Glass Design: 2.0 mm heat-strengthened AR-coated glass (front and back) improves durability and captures reflected light for rear-side generation (up to 30 %).
-
Enhanced Low-Light Performance: Superior energy generation in low-irradiance and high-temperature conditions with a temperature coefficient of -0.29 % / °C.
-
Resilient in Harsh Climates: Salt-, ammonia-, sand-, and humidity-resistant for coastal or desert installations.
-
Lower LCOE & Improved Logistics: High power density and optimized container space utilization reduce freight and installation costs.
Warranty
-
12-Year Product Workmanship Warranty
-
30-Year Performance Warranty
-
1 % first-year degradation
-
0.4 % annual linear degradation thereafter
-
87.4 % power retained after 30 years
-
Certified to IEC 61215 / 61730 / 61701 / 62716 / UL 61730 standards and manufactured under ISO 9001, ISO 14001, and ISO 45001 quality systems
Best Applications
-
Utility-Scale Ground Mounts: Maximum wattage per string for reduced BOS costs.
-
Commercial Rooftops: High-efficiency footprint with durable dual-glass construction.
-
Agrivoltaic & Reflective Sites: Ideal for bifacial gain applications with high albedo surfaces.
-
Coastal & High-Heat Regions: Certified resistance to salt mist, sand, and ammonia for extreme environmental conditions.
Product Specifications
| Electrical (STC) | Value |
|---|---|
| Model | TSM-NEG19RC.20 |
| Resources | Data Sheet |
| Rated Power (Pmax) | 615 W |
| Module Efficiency | 23.0 % |
| Voltage at Pmax (Vmp) | 41.4 V |
| Current at Pmax (Imp) | 15.91 A |
| Open Circuit Voltage (Voc) | 49.6 V |
| Short Circuit Current (Isc) | 16.68 A |
| Power Tolerance | 0 ~ +5 W |
| Bifacial Gain (Rear Side) | Up to 30 % (depending on albedo) |
| Max System Voltage | 1500 V DC (IEC / UL) |
| Max Series Fuse Rating | 35 A |
| Temperature Coefficient (Pmax) | -0.29 % / °C |
| Operating Temperature | -40 °C ~ +85 °C |
| Mechanical | Value |
|---|---|
| Dimensions | 2382 × 1134 × 30 mm (93.78 × 44.65 × 1.18 in) |
| Weight | 33.7 kg (74.3 lb) |
| Cell Type | N-Type Monocrystalline i-TOPCon |
| Number of Cells | 132 cells (6 × 22 layout) |
| Front / Back Glass | 2.0 mm AR-Coated Heat-Strengthened Glass |
| Frame | Anodized Aluminum Alloy (30 mm) |
| Junction Box | IP68 rated, MC4 EVO2 / TS4 PLUS compatible |
| Cable | 4.0 mm² – length 350 / 280 mm (customizable) |
| Modules per Pallet | 36 pcs |
| Modules per 40' Container | 720 pcs |
Original: $7,399.99
-70%$7,399.99
$2,220.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Trina 615W (Pallet of 36) Vertex N N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG19RC.20
Pallet Only – 36 Panels
Key Technology
-
N-Type i-TOPCon Cells: Higher carrier lifetime, lower LID/LeTID, and improved long-term yield.
-
High Density Interconnect + SMBB Design: Super Multi-Busbar technology enhances light trapping and reduces resistive losses for higher output.
-
Bifacial Dual-Glass Design: 2.0 mm heat-strengthened AR-coated glass (front and back) improves durability and captures reflected light for rear-side generation (up to 30 %).
-
Enhanced Low-Light Performance: Superior energy generation in low-irradiance and high-temperature conditions with a temperature coefficient of -0.29 % / °C.
-
Resilient in Harsh Climates: Salt-, ammonia-, sand-, and humidity-resistant for coastal or desert installations.
-
Lower LCOE & Improved Logistics: High power density and optimized container space utilization reduce freight and installation costs.
Warranty
-
12-Year Product Workmanship Warranty
-
30-Year Performance Warranty
-
1 % first-year degradation
-
0.4 % annual linear degradation thereafter
-
87.4 % power retained after 30 years
-
Certified to IEC 61215 / 61730 / 61701 / 62716 / UL 61730 standards and manufactured under ISO 9001, ISO 14001, and ISO 45001 quality systems
Best Applications
-
Utility-Scale Ground Mounts: Maximum wattage per string for reduced BOS costs.
-
Commercial Rooftops: High-efficiency footprint with durable dual-glass construction.
-
Agrivoltaic & Reflective Sites: Ideal for bifacial gain applications with high albedo surfaces.
-
Coastal & High-Heat Regions: Certified resistance to salt mist, sand, and ammonia for extreme environmental conditions.
Product Specifications
| Electrical (STC) | Value |
|---|---|
| Model | TSM-NEG19RC.20 |
| Resources | Data Sheet |
| Rated Power (Pmax) | 615 W |
| Module Efficiency | 23.0 % |
| Voltage at Pmax (Vmp) | 41.4 V |
| Current at Pmax (Imp) | 15.91 A |
| Open Circuit Voltage (Voc) | 49.6 V |
| Short Circuit Current (Isc) | 16.68 A |
| Power Tolerance | 0 ~ +5 W |
| Bifacial Gain (Rear Side) | Up to 30 % (depending on albedo) |
| Max System Voltage | 1500 V DC (IEC / UL) |
| Max Series Fuse Rating | 35 A |
| Temperature Coefficient (Pmax) | -0.29 % / °C |
| Operating Temperature | -40 °C ~ +85 °C |
| Mechanical | Value |
|---|---|
| Dimensions | 2382 × 1134 × 30 mm (93.78 × 44.65 × 1.18 in) |
| Weight | 33.7 kg (74.3 lb) |
| Cell Type | N-Type Monocrystalline i-TOPCon |
| Number of Cells | 132 cells (6 × 22 layout) |
| Front / Back Glass | 2.0 mm AR-Coated Heat-Strengthened Glass |
| Frame | Anodized Aluminum Alloy (30 mm) |
| Junction Box | IP68 rated, MC4 EVO2 / TS4 PLUS compatible |
| Cable | 4.0 mm² – length 350 / 280 mm (customizable) |
| Modules per Pallet | 36 pcs |
| Modules per 40' Container | 720 pcs |
